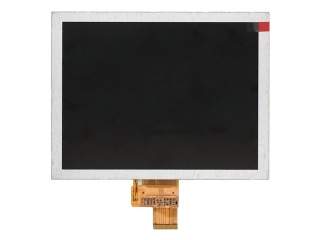

| Nambari ya Sehemu | TM080TDHG01-42 |
| Chapa | TIANMA |
| Ukubwa | 8.0 |
| Maombi | Industrial |
| Azimio | 1024×768 |
| Muundo | LCM , a-Si TFT-LCD |
| Mwangaza | |
| CR | 1000:1 |
| Rangi | 262K/16.7M |
| Mwangaza nyuma | 3S9P |
| Kiolesura | |
| mtengenezaji | TIANMA |
| ukubwa wa skrini | 8.0 inch |
| nambari ya pixel | 1024(RGB)×768 (XGA) 160PPI |
| eneo amilifu(mm) | 162.048 × 121.536 (H×V) |
| eneo la bezel(mm) | 164.65 × 124.14 (H×V) |
| mwangaza | 400 (Typ.)(cd/m²) |
| angle ya kutazama | 80/80/80/80 (Typ.)(CR≥10) |
| mtazamo mzuri | 12 o'clock |
| kina cha rangi | 262K/16.7M 50% NTSC |
| wingi | 189g |
| kiwango cha upya | 60Hz |
| jina la mfano | TM080TDHG01-42 |
| aina ya skrini | LCM , a-Si TFT-LCD |
| mpangilio | RGB Vertical Stripe |
| muhtasari(mm) | 183 × 141 × 3.7 (H×V×D) |
| matibabu | Clear |
| uwiano wa utofautishaji | 1000 : 1 (Typ.) (TM) |
| hali ya kazi | TN, Normally White, Transmissive |
| majibu | 20 (Typ.)(Tr+Td) ms |
| backlight | 3S9P WLED , 30K hours , No Driver |
| kutumika kwa | Industrial |
| skrini ya kugusa | Without |
