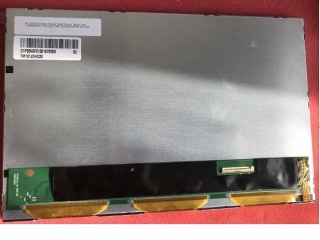

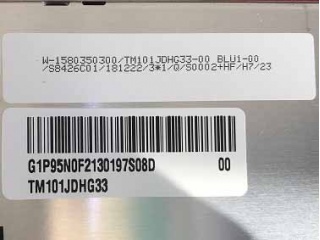

| Nambari ya Sehemu | TM101JDHG33 |
| Chapa | TIANMA |
| Ukubwa | 10.1 |
| Maombi | Industrial Medical I |
| Azimio | 1280×800 |
| Muundo | a-Si TFT-LCD , LCM |
| Mwangaza | |
| CR | 700:1 |
| Rangi | 262K/16.7M |
| Mwangaza nyuma | WLED |
| Kiolesura | LVDS |
| chapa | TIANMA |
| ukubwa wa diagonal | 10.1 inch |
| muundo wa pixel | 1280(RGB)×800 [WXGA] 149PPI |
| eneo la kazi | 216.96(H)×135.6(V) mm |
| eneo la bezel | 219.96(H)×138.6(V) mm |
| mwangaza | 900 cd/m² (Typ.) |
| tazama mwelekeo | Symmetry |
| angle ya kutazama | 85/85/85/85 (Typ.)(CR≥10) |
| rangi ya msaada | 262K/16.7M 50% NTSC |
| uzito | 280g (Typ.) |
| kiwango cha fremu | 60Hz |
| aina ya kiolesura | LVDS (1 ch, 6/8-bit) , 40 pins Connector |
| usambazaji wa nguvu | 3.3V (Typ.) |
| mazingira | Operating Temperature: -30 ~ 80 °C ; Storage Temperature: -40 ~ 80 °C |
| mfano | TM101JDHG33 |
| aina | a-Si TFT-LCD , LCM |
| usanidi | RGB Vertical Stripe |
| muhtasari dim. | 229.8(H)×149(V) ×9.6(D) mm |
| matibabu | Hard coating |
| uwiano wa utofautishaji | 700:1 (Typ.) (TM) |
| wakati wa majibu | 25 (Typ.)(Tr+Td) |
| hali ya uendeshaji | SFT, Normally Black, Transmissive |
| chanzo cha mwanga | WLED , 40K hours , With LED Driver |
| iliyoundwa kwa ajili ya | Industrial Medical Imaging Outdoor High Brightness |
| jopo la kugusa | Without |
| B101AW02 V0 | AUO | 10.1 | 1024×600 |
| B101AW06 V1 HW0A | AUO | 10.1 | 1024×600 |
| CLAA101NB03A | CPT | 10.1 | 1024×600 |
| CLAA101WH12 LE | CPT | 10.1 | 1280×800 |
| LP101WH1-TLA2 | LG Display | 10.1 | 1366×768 |
| LTL101AL02-T01 | Samsung | 10.1 | 1280×800 |
| LTN101NT02-W05 | Samsung | 10.1 | 1024×600 |
| TM101DDHG01 | Tianma | 10.1 | 1024×600 |
| TM101DDHG03 | Tianma | 10.1 | 1024×600 |
| TM101JDHP01 | Tianma | 10.1 | 1280×800 |
