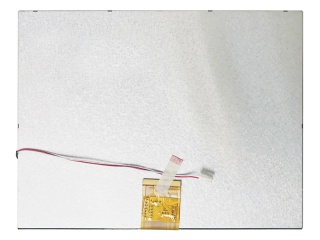

| Nambari ya Sehemu | TM104SDHG30-71 |
| Chapa | TIANMA |
| Ukubwa | 10.4 |
| Maombi | Industrial Automotiv |
| Azimio | 800×600 |
| Muundo | a-Si TFT-LCD, LCM |
| Mwangaza | |
| CR | 500:1 |
| Rangi | 262K/16.2M |
| Mwangaza nyuma | WLED |
| Kiolesura | Parallel |
| chapa | TIANMA |
| mfano | TM104SDHG30-71 |
| ukubwa wa diagonal | 10.4 inch |
| aina | a-Si TFT-LCD, LCM |
| muundo wa pixel | 800(RGB)×600 [SVGA] 96PPI |
| usanidi | RGB Vertical Stripe |
| eneo la kazi | 211.2(H)×158.4(V) mm |
| muhtasari dim. | 228.4(H)×175.4(V) ×6.5(D) mm |
| eneo la bezel | 214.2(H)×162.5(V) mm |
| matibabu | Antiglare, Hard coating (3H) |
| mwangaza | 350 cd/m² (Typ.) |
| uwiano wa utofautishaji | 500:1 (Typ.) (TM) |
| tazama mwelekeo | 12 o'clock |
| wakati wa majibu | 10/15 (Typ.)(Tr/Td) |
| angle ya kutazama | 70/70/60/70 (Typ.)(CR≥10) |
| hali ya uendeshaji | TN, Normally White, Transmissive |
| rangi ya msaada | 262K/16.2M 50% NTSC |
| chanzo cha mwanga | WLED [3S12P] , 30K hours , W/O Driver |
| uzito | 360g |
| iliyoundwa kwa ajili ya | Industrial Automotive Display |
| kiwango cha fremu | 60Hz |
| jopo la kugusa | Without |
| aina ya kiolesura | Parallel RGB (1 ch, 6/8-bit) , 60 pins FPC |
| usambazaji wa nguvu | 3.3/11.0/25.0/-7.0V (Typ.)(VCC/AVDD/VGH/VGL) |
| mazingira | Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C |
