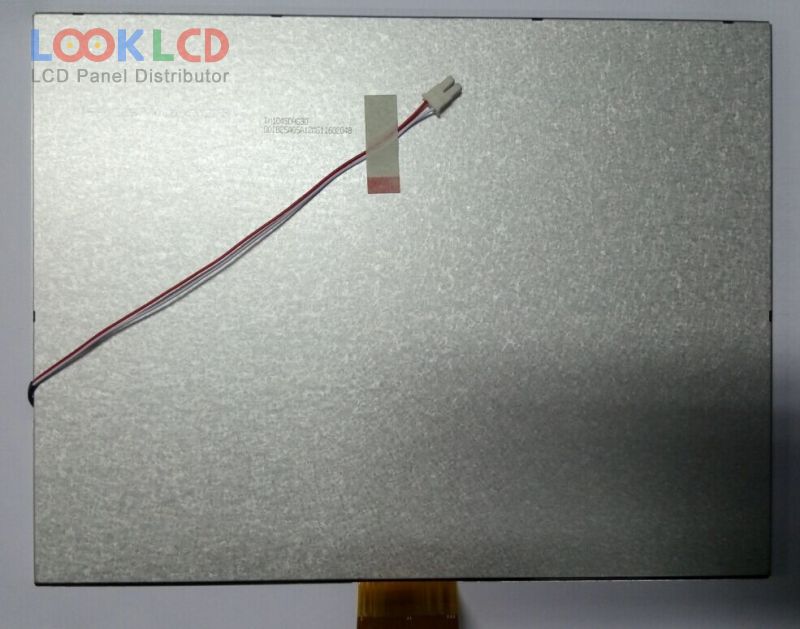

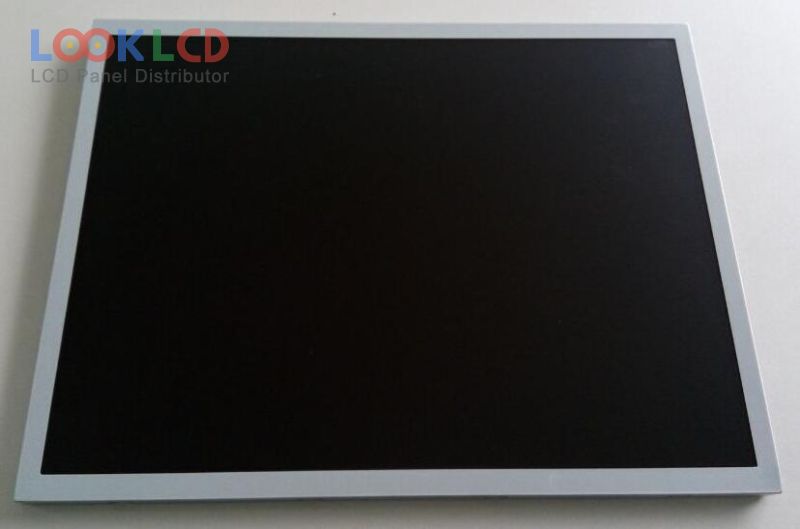

| Nambari ya Sehemu | TM104SDHG30 |
| Chapa | Tianma |
| Ukubwa | 10.4 |
| Maombi | DPF |
| Azimio | 800×600 |
| Muundo | LCM |
| Mwangaza | 350 |
| CR | 500:1 |
| Rangi | 262K/16.7M |
| Mwangaza nyuma | WLED |
| Kiolesura | TTL |
| chapa ya paneli | TIANMA |
| mfano wa paneli | TM104SDHG30 |
| aina ya paneli | a-Si TFT-LCD , LCM |
| saizi ya paneli | 10.4 inch |
| azimio | 800(RGB)×600 , SVGA |
| hali ya kuonyesha | TN, Normally White, Transmissive |
| eneo la kazi | 211.2×158.4 mm |
| muhtasari | 228.4×175.4 mm |
| uso | Antiglare, Hard coating (3H) |
| mwangaza | 350 cd/m² (Typ.) |
| uwiano wa utofautishaji | 500:1 (Typ.) |
| kuonyesha rangi | 262K/16.7M (6-bit / 6-bit + Hi-FRC), CIE193150% |
| wakati wa majibu | 10/15 (Typ.)(Tr/Td) |
| angle ya kutazama | 70/70/60/70 (Typ.)(CR≥10)(L/R/U/D) |
| masafa | 60Hz |
| aina ya taa | 3S12PWLEDEmbedded (LED Driver) |
| kiolesura cha ishara | Parallel RGB (1 ch, 6/8-bit), 60 pins |
| voltage ya pembejeo | 3.3/11.0/21.0/-7.0V (Typ.)(VCC/AVDD/VGH/VGL) |
| maombi | DPF |
