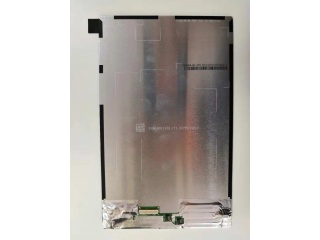

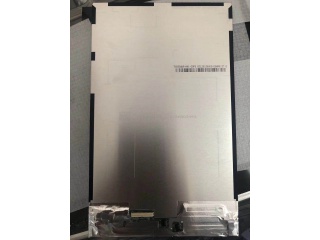

| Nambari ya Sehemu | TV080WUM-NH1 |
| Chapa | BOE |
| Ukubwa | 8.0 |
| Maombi | Pad & Tablet |
| Azimio | 1200×1920 |
| Muundo | a-Si TFT-LCD, LCM |
| Mwangaza | |
| CR | 850:1 |
| Rangi | 16.7M |
| Mwangaza nyuma | WLED |
| Kiolesura | MIPI |
| chapa | BOE |
| mfano | TV080WUM-NH1 |
| ukubwa wa diagonal | 8.0 inch |
| aina | a-Si TFT-LCD, LCM |
| muundo wa pixel | 1200(RGB)×1920 [WUXGA] 283PPI |
| usanidi | RGB Vertical Stripe |
| eneo la kazi | 107.64(H)×172.224(V) mm |
| muhtasari dim. | - |
| mwangaza | - |
| uwiano wa utofautishaji | 850:1 (Typ.) (TM) |
| tazama mwelekeo | Symmetry |
| wakati wa majibu | 25 (Typ.)(Tr+Td) |
| angle ya kutazama | 85/85/85/85 (Typ.)(CR≥10) |
| hali ya uendeshaji | ADS, Normally Black, Transmissive |
| rangi ya msaada | 16.7M |
| chanzo cha mwanga | WLED |
| uzito | - |
| iliyoundwa kwa ajili ya | Pad & Tablet |
| kiwango cha fremu | 60Hz |
| jopo la kugusa | - |
| aina ya kiolesura | MIPI (4 data lanes) , 39 pins Connector |
| usambazaji wa nguvu | 3.3V (Typ.) |
| mazingira | Operating Temperature: -20 ~ 60 °C ; Storage Temperature: -20 ~ 60 °C |
