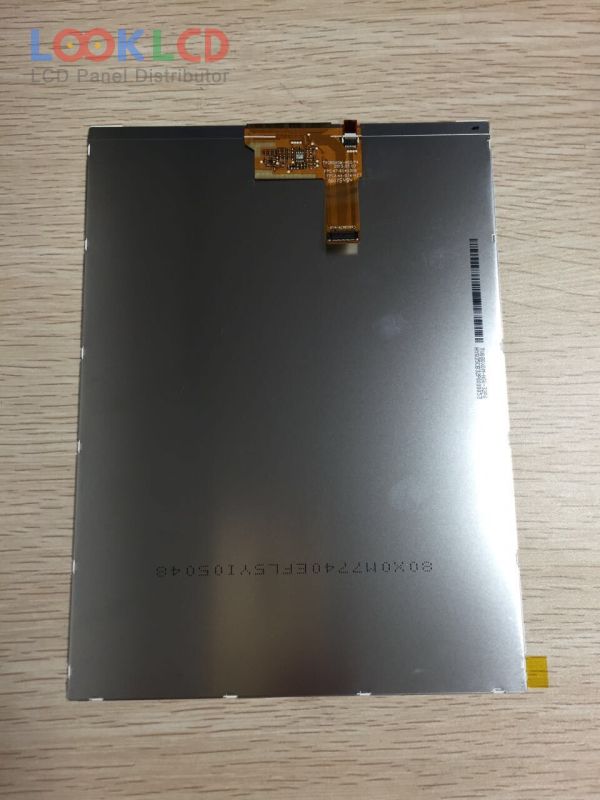

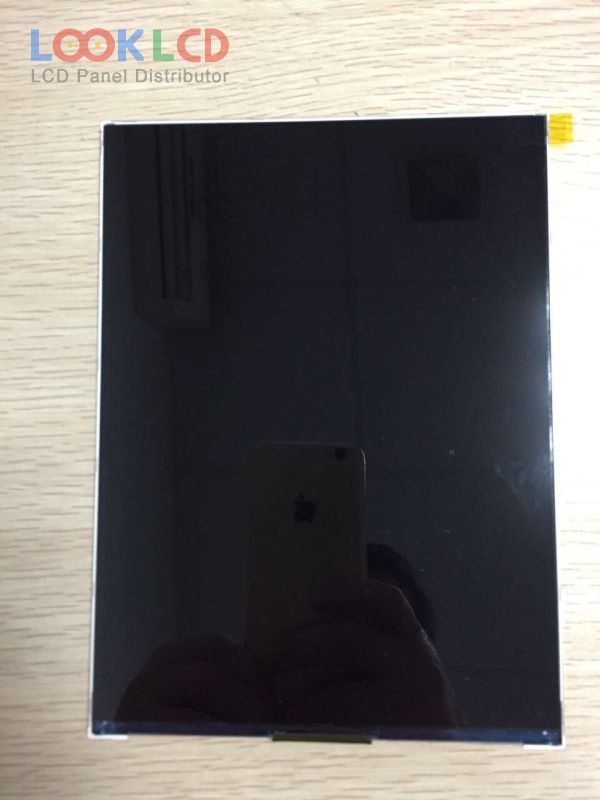

| Nambari ya Sehemu | TV080X0M-NS0 |
| Chapa | BOE |
| Ukubwa | 8.0 |
| Maombi | PAD |
| Azimio | 768×1024 |
| Muundo | LCM |
| Mwangaza | 450 |
| CR | 900:1 |
| Rangi | 16.7M |
| Mwangaza nyuma | WLED |
| Kiolesura | MIPI |
| chapa ya paneli | BOE |
| mfano wa paneli | TV080X0M-NS0 |
| aina ya paneli | a-Si TFT-LCD , LCM |
| saizi ya paneli | 8.0 inch |
| azimio | 768(RGB)×1024 , XGA |
| hali ya kuonyesha | ADS, Normally Black, Transmissive |
| eneo la kazi | 121.882×162.509 mm |
| muhtasari | 128.142×173.739 mm |
| uso | |
| mwangaza | 450 cd/m² (Typ.) |
| uwiano wa utofautishaji | 900:1 (Typ.) |
| kuonyesha rangi | 16.7M (8-bit), CIE193171% |
| wakati wa majibu | 30 (Typ.)(Tr+Td) |
| angle ya kutazama | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| masafa | 60Hz |
| aina ya taa | 8S3PWLEDWithout Driver |
| kiolesura cha ishara | MIPI (4 data lanes), 34 pins |
| voltage ya pembejeo | 1.8/5.4/-5.4V (Typ.)(Vio/Vsn/Vsp) |
| maombi | PAD |
