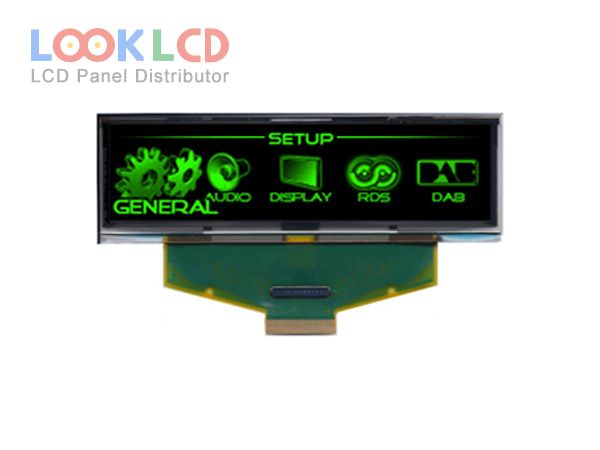

| Nambari ya Sehemu | UG-5664ASGEF01 |
| Chapa | WiseChip |
| Ukubwa | 3.1 |
| Maombi | IA |
| Azimio | 256×64 |
| Muundo | OLED |
| Mwangaza | 120 |
| CR | 2000:1 |
| Rangi | Grayscale(G) |
| Mwangaza nyuma | self |
| Kiolesura | CPU/SPI |
| chapa ya paneli | Univision |
| mfano wa paneli | UG-5664ASGEF01 |
| aina ya paneli | PM-OLED , OLED |
| saizi ya paneli | 3.1 inch |
| azimio | 256×64 |
| eneo la kazi | 76.78×19.18 mm |
| muhtasari | 88×27.8×2.1 mm |
| uso | |
| mwangaza | 120 cd/m² (Typ.) |
| uwiano wa utofautishaji | 2000 : 1 (Typ.) |
| kuonyesha rangi | Grayscale(G) (4-bit) |
| angle ya kutazama | 80/80/80/80 (Min.)(L/R/U/D) |
| dereva ic | COF Built-in SSD1322 |
| kiolesura cha ishara | 8-bit 6800/8080 parallel, 3/4-wire SPI, 30 pins |
| voltage ya pembejeo | 2.8/12V (Typ.)(VCI/VCC) |
| rohs: | |
| maombi | IA |
