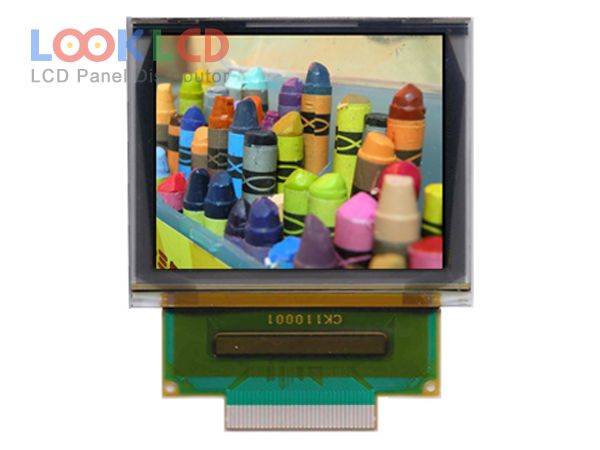

| Nambari ya Sehemu | UG-6028GDEBF02 |
| Chapa | WiseChip |
| Ukubwa | 1.7 |
| Maombi | IA |
| Azimio | 160×128 |
| Muundo | OLED |
| Mwangaza | 75 |
| CR | 2000:1 |
| Rangi | 262K |
| Mwangaza nyuma | self |
| Kiolesura | CPU/RGB/SPI |
| chapa ya paneli | WiseChip |
| mfano wa paneli | UG-6028GDEBF02 |
| aina ya paneli | PM-OLED , OLED |
| saizi ya paneli | 1.7 inch |
| azimio | 160(RGB)×128 |
| eneo la kazi | 33.575×26.864 mm |
| muhtasari | 39.9×34×1.7 mm |
| uso | |
| mwangaza | 75 cd/m² (Typ.) |
| uwiano wa utofautishaji | 2000 : 1 (Typ.) |
| kuonyesha rangi | 262K (6-bit) |
| angle ya kutazama | 80/80/80/80 (Min.)(L/R/U/D) |
| dereva ic | COF Built-in SEPS525 |
| kiolesura cha ishara | 8/9-bit 8080 parallel, 6-bit RGB, 4-wire SPI, 35 pins |
| voltage ya pembejeo | 2.8/2.8/14.0V (VDD/VDDIO/VDDH) |
| rohs: | |
| maombi | IA |
