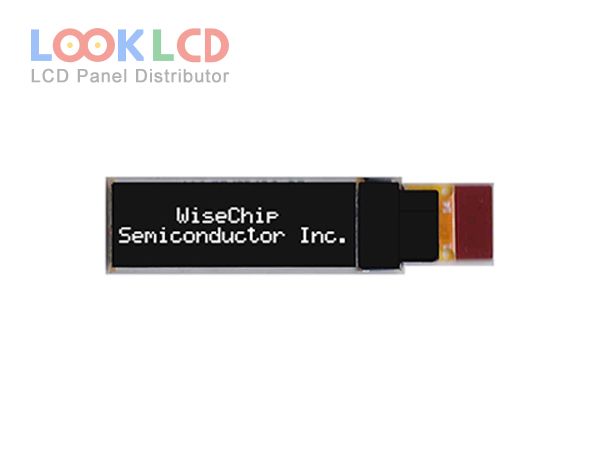

| Nambari ya Sehemu | UG-9616TSWBG01 |
| Chapa | WiseChip |
| Ukubwa | 0.84 |
| Maombi | IA |
| Azimio | 96×16 |
| Muundo | OLED |
| Mwangaza | 120 |
| CR | 10000:1 |
| Rangi | Mono(White) |
| Mwangaza nyuma | self |
| Kiolesura | I²C |
| chapa ya paneli | WiseChip |
| mfano wa paneli | UG-9616TSWBG01 |
| aina ya paneli | PM-OLED , OLED |
| saizi ya paneli | 0.84 inch |
| azimio | 96×16 |
| eneo la kazi | 21.104×3.504 mm |
| muhtasari | 29.1×9.2×1.4 mm |
| uso | |
| mwangaza | 120 cd/m² (Typ.) |
| uwiano wa utofautishaji | 10000 : 1 (Typ.) |
| kuonyesha rangi | Mono(White) (1-bit) |
| angle ya kutazama | |
| dereva ic | Built-in SSD1306 |
| kiolesura cha ishara | I²C, 14 pins |
| voltage ya pembejeo | 2.8/7.25V (Typ.)(VDD/VCC) |
| maombi | IA |
| UG-9616TLBBG01 | WiseChip | 0.84 | 96×16 |
| UG-9616TSWBG01 | WiseChip | 0.84 | 96×16 |
| UG-9616TSWCG02 | WiseChip | 0.69 | 96×16 |
| AT104XH11 | Mitsubishi | 10.4 | 1024×768 |
| DMF-51043NFU-FW-1 | Kyocera | 9.4 | 640×480 |
| EL320.240-FA3 CC | Lumineq | 4.9 | 320×240 |
| EL640.480-AG1 | Lumineq | 8.1 | 640×480 |
| G150XG01 V3 | AUO | 15.0 | 1024×768 |
| LQ104V1LG61 | SHARP | 10.4 | 640×480 |
| LQ121S1DC71 | SHARP | 12.1 | 800×600 |
| TM057KDH05 | Tianma | 5.7 | 320×240 |
| TX23D86VM0BAA | KOE | 9.0 | 1280×768 |
| TX38D01VM1AAA | KOE | 15.0 | 1024×768 |
