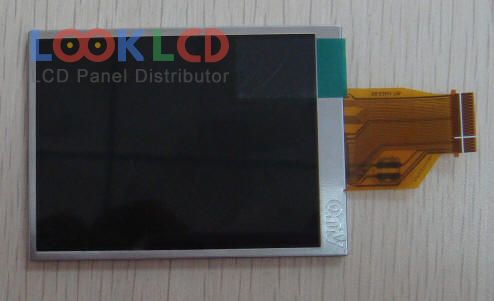

| Nambari ya Sehemu | A027DN03 V3 |
| Chapa | AUO |
| Ukubwa | 2.7 |
| Maombi | DSC |
| Azimio | 320×240 |
| Muundo | LCM |
| Mwangaza | 250 |
| CR | 300:1 |
| Rangi | 16.7M |
| Mwangaza nyuma | WLED |
| Kiolesura | Serial RGB |
| chapa ya paneli | AUO |
| mfano wa paneli | A027DN03 V3 |
| aina ya paneli | a-Si TFT-LCD , LCM |
| saizi ya paneli | 2.7 inch |
| azimio | 320(RGB)×240 , QVGA |
| hali ya kuonyesha | TN, Normally White, Transmissive |
| eneo la kazi | 54×40.5 mm |
| muhtasari | 63.5×46.6 mm |
| uso | Glare (Haze 0%) |
| mwangaza | 250 cd/m² (Typ.) |
| uwiano wa utofautishaji | 300:1 (Typ.) |
| kuonyesha rangi | 16.7M (8-bit) |
| wakati wa majibu | 10/25 (Typ.)(Tr/Td) |
| angle ya kutazama | 60/60/50/60 (Typ.)(CR≥10)(L/R/U/D) |
| masafa | 60Hz |
| aina ya taa | 1 pcsWLEDWithout Driver |
| kiolesura cha ishara | Serial RGB (8-bit) + SPI, CCIR601/656, 39 pins |
| voltage ya pembejeo | 3.3/13/-10V (VDD/VGH/VGL) |
| maombi | DSC |
| A027DN01 VQ | AUO | 2.7 | 320×240 |
| A027DN01 VR | AUO | 2.7 | 320×240 |
| A027DN03 V1 | AUO | 2.7 | 320×240 |
| A027DN03 V2 | AUO | 2.7 | 320×240 |
| A027DN03 V3 | AUO | 2.7 | 320×240 |
| A027DN03 V7 | AUO | 2.7 | 320×240 |
| A027DN03 V8 | AUO | 2.7 | 320×240 |
| A027DN04 V3 | AUO | 2.7 | 320×240 |
| A027DN04 V7 | AUO | 2.7 | 320×240 |
| A027DN04 V8 | AUO | 2.7 | 320×240 |
| A027DN03 V2 | AUO | 2.7 | 320×240 |
| A030DN01 V0 | AUO | 3.0 | 320×240 |
| A035QN01 V4 | AUO | 3.5 | 320×240 |
| LQ035Q1DH01 | SHARP | 3.5 | 320×240 |
| LTV250QV-F03 | Samsung | 2.5 | 320×240 |
| PD024OX4 | E Ink | 2.4 | 480×234 |
| PT035TN23 V.1 | Innolux | 3.5 | 320×240 |
| TD020THEG1 | TPO | 2.0 | 640×240 |
| TD025THEG1 | TPO | 2.5 | 320×240 |
| TM035KDH16-09 | Tianma | 3.5 | 320×240 |
