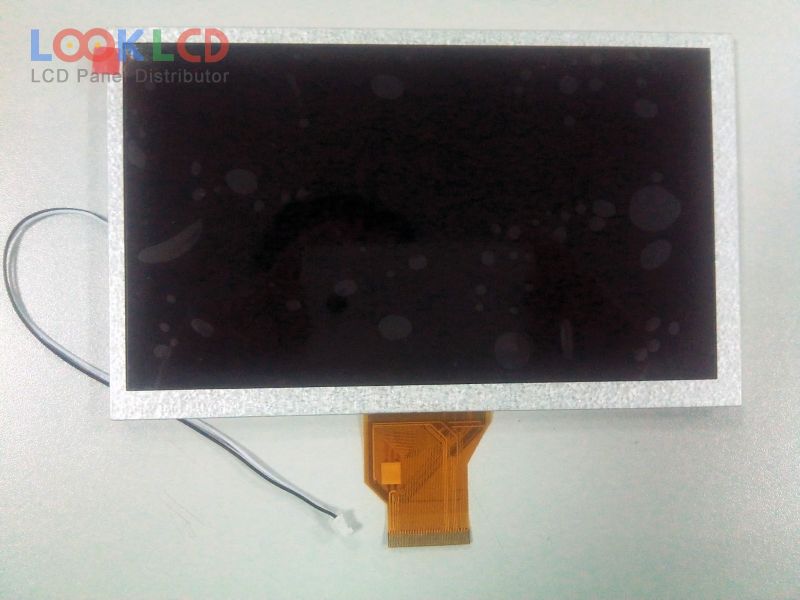

| Nambari ya Sehemu | DLC0800AIG-2 |
| Chapa | Other |
| Ukubwa | 8.0 |
| Maombi | CNS |
| Azimio | 800×480 |
| Muundo | LCM |
| Mwangaza | 1000 |
| CR | 500:1 |
| Rangi | 16.7M |
| Mwangaza nyuma | WLED |
| Kiolesura | TTL |
| chapa ya paneli | DLC |
| mfano wa paneli | DLC0800AIG-2 |
| aina ya paneli | a-Si TFT-LCD , LCM |
| saizi ya paneli | 8.0 inch |
| azimio | 800(RGB)×480 , WVGA |
| hali ya kuonyesha | TN, Normally White, Transmissive |
| eneo la kazi | 176.64×99.36 mm |
| muhtasari | 192.8×116.9×6.7 mm |
| uso | |
| mwangaza | 1000 cd/m² (Typ.) |
| uwiano wa utofautishaji | 500:1 (Typ.) |
| kuonyesha rangi | 16.7M (8-bit) |
| wakati wa majibu | 10/15 (Typ.)(Tr/Td) |
| angle ya kutazama | 70/70/50/70 (Typ.)(CR≥10)(L/R/U/D) |
| masafa | 65Hz |
| aina ya taa | WLEDWithout Driver |

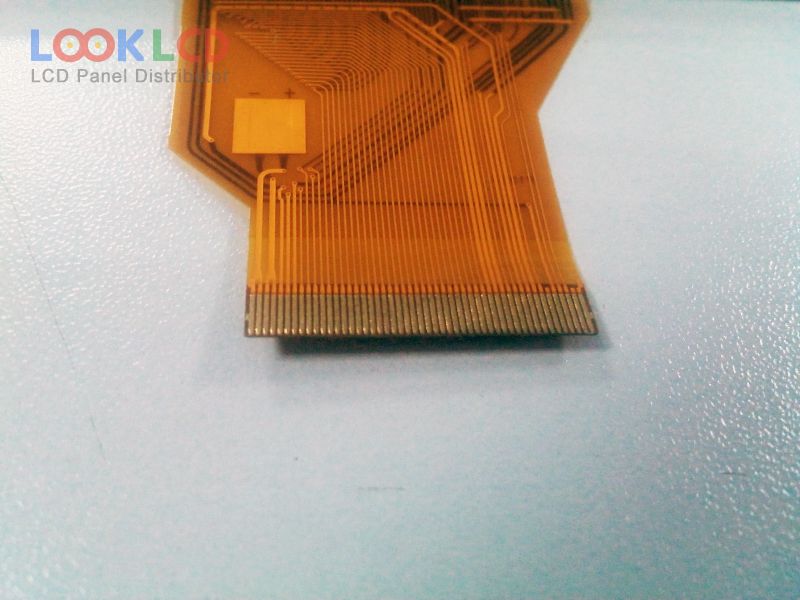

| kiolesura cha ishara | Parallel RGB (1 ch, 8-bit), 50 pins |
| voltage ya pembejeo | 3.3/10.4/16.0/-7.0V (Typ.)(DVDD/AVDD/VGH/VGL) |
| maombi | CNS |
| A080XN01 V1 | AUO | 8.0 | 1024×768 |
| C080VW04 V0 | AUO | 8.0 | 800×480 |
| CLAA080LA0BCW | CPT | 8.0 | 800×480 |
| CLAA080WQ02 XN | CPT | 8.0 | 800×1280 |
| DLC0800AIG-2 | Other | 8.0 | 800×480 |
| DLC0800BIG-4 | Other | 8.0 | 800×600 |
| LA080WV3-SD01 | LG Display | 8.0 | 800×480 |
| LB080WV4-TD02 | LG Display | 8.0 | 800×480 |
| LT080EE04000 | TOSHIBA | 8.0 | 1600×768 |
| LTA080B441A | TOSHIBA | 8.0 | 480×234 |
| A070VW05 V1 | AUO | 7.0 | 800×480 |
| A070VW08 V2 | AUO | 7.0 | 800×480 |
| AT080TN03 V.2 | Innolux | 8.0 | 800×480 |
| C070VW04 V2 | AUO | 7.0 | 800×480 |
| CLAA043JE01CW | CPT | 4.3 | 480×272 |
| CLAA070LH01AW | CPT | 7.0 | 800×480 |
| DLC1010GIG | Other | 10.1 | 1280×800 |
| HSD080IFW1-A00 | HannStar | 8.0 | 1024×600 |
| LA050WQ1-TD01 | LG Display | 5.0 | 480×272 |
| PA080XS4 | E Ink | 7.9 | 480×468 |
