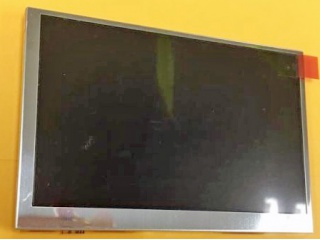

| Nambari ya Sehemu | AM-800480LTMQW-WAH |
| Chapa | AMPIRE |
| Ukubwa | 5.0 |
| Maombi | Industrial |
| Azimio | 800×480 |
| Muundo | a-Si TFT-LCD, LCM |
| Mwangaza | |
| CR | 500:1 |
| Rangi | 262K |
| Mwangaza nyuma | WLED |
| Kiolesura | CPU |
| chapa | AMPIRE |
| mfano | AM-800480LTMQW-WAH |
| ukubwa wa diagonal | 5.0 inch |
| aina | a-Si TFT-LCD, LCM |
| muundo wa pixel | 800(RGB)×480 [WVGA] 188PPI |
| usanidi | RGB Vertical Stripe |
| eneo la kazi | 108(H)×64.8(V) mm |
| muhtasari dim. | 118.5(H)×77.1(V) ×6.37(D) mm |
| eneo la bezel | 110.6(H)×67.4(V) mm |
| matibabu | - |
| mwangaza | 470 cd/m² (Typ.) |
| uwiano wa utofautishaji | 500:1 (Typ.) (TM) |
| tazama mwelekeo | - |
| wakati wa majibu | 15/35 (Typ.)(Tr/Td) |
| angle ya kutazama | 70/70/70/50 (Typ.)(CR≥10) |
| hali ya uendeshaji | TN, Normally White, Transmissive |
| rangi ya msaada | 262K 52% NTSC |
| chanzo cha mwanga | WLED [3S6P] , With LED Driver |
| uzito | TBD |
| iliyoundwa kwa ajili ya | Industrial |
| kiwango cha fremu | 60Hz |
| jopo la kugusa | Without |
| aina ya kiolesura | CPU , 40 pins Connector |
| usambazaji wa nguvu | 3.3V (Typ.) |
| mazingira | Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C |
