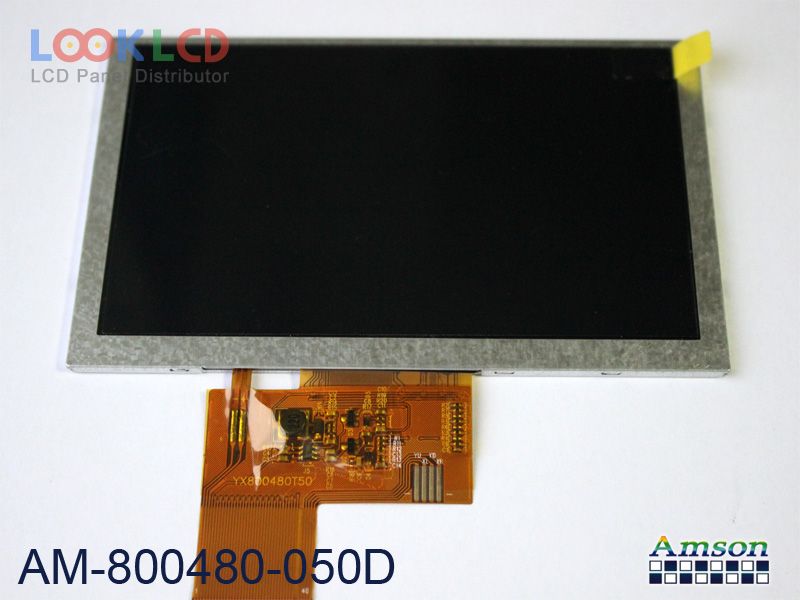

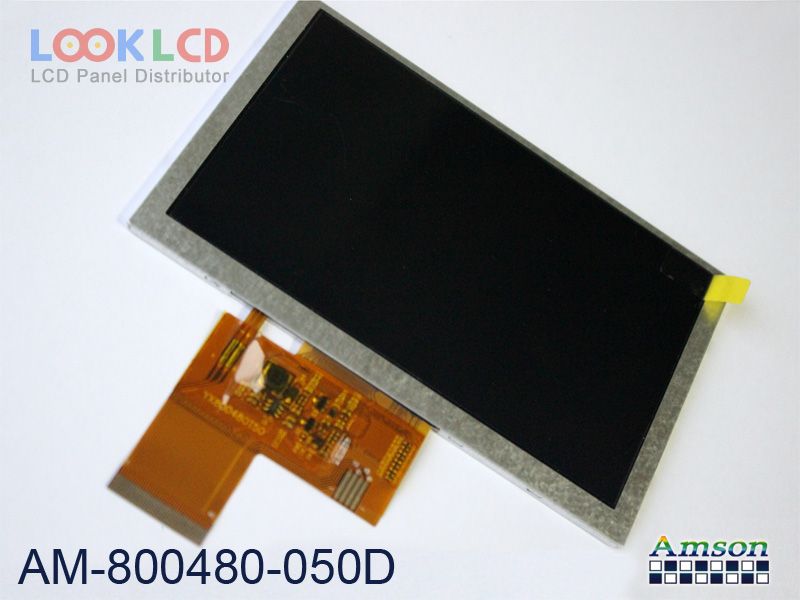

| Nambari ya Sehemu | AM-800480-050D |
| Chapa | Other |
| Ukubwa | 5.0 |
| Maombi | CNS |
| Azimio | 800×480 |
| Muundo | LCM |
| Mwangaza | |
| CR | |
| Rangi | 16.7M |
| Mwangaza nyuma | WLED |
| Kiolesura | TTL |
| chapa ya paneli | Amson |
| mfano wa paneli | AM-800480-050D |
| aina ya paneli | a-Si TFT-LCD , LCM |
| saizi ya paneli | 5.0 inch |
| azimio | 800(RGB)×480 , WVGA |
| hali ya kuonyesha | TN, Normally White, Transmissive |
| eneo la kazi | 108×64.8 mm |
| muhtasari | 120.7×75.8×3.1 mm |
| uso | |
| mwangaza | |
| uwiano wa utofautishaji | |
| kuonyesha rangi | 16.7M (8-bit) |
| wakati wa majibu | |
| angle ya kutazama | |
| aina ya taa | WLEDWithout Driver |
| kiolesura cha ishara | Parallel RGB (1 ch, 8-bit), 40 pins |
| voltage ya pembejeo | 3.3V (Typ.) |
| maombi | CNS |
| AM-800480-050D | Other | 5.0 | 800×480 |
| AM-800480LATMQW-TN0H | AMPIRE | 5.0 | 800×480 |
| AM-800480LTMQW-00H-F | AMPIRE | 5.0 | 800×480 |
| AM-800480LTMQW-W0H | AMPIRE | 5.0 | 800×480 |
| AM-800480R3TMQW-B2H | AMPIRE | 7.0 | 800×480 |
| AM-800480RCTMQW-00H | AMPIRE | 7.0 | 800×480 |
| AM-800480RSTMQW-TA1H | AMPIRE | 7.0 | 800×480 |
| AM-800480RWTMQW-TA4H | AMPIRE | 7.0 | 800×480 |
| AM-800480STMQW-00 | AMPIRE | 7.0 | 800×480 |
| AM-800480STMQW-W0 | AMPIRE | 7.0 | 800×480 |
| A070VTN03.0 | AUO | 7.0 | 800×480 |
| AT080TN42 V.1 | Innolux | 8.0 | 800×600 |
| C070VVN03.1 | AUO | 7.0 | 800×480 |
| CLAA069LA0NCW | CPT | 7.0 | 800×480 |
| CLAA080LG02AW | CPT | 8.0 | 800×480 |
| CLAA090LC41CW | CPT | 9.0 | 800×480 |
| L5S30883P00 | SANYO | 4.5 | 480×240 |
| LQ070T5GC01 | SHARP | 7.0 | |
| NL3224AC35-01 | NLT | 5.5 | 320×240 |
| TFD58W22MW | TOSHIBA | 5.8 | 400×234 |
