| Nambari ya Sehemu | AV123Z7M-N1C |
| Chapa | BOE |
| Ukubwa | 12.3 |
| Maombi | Outdoor High Brightn |
| Azimio | 1920×720 |
| Muundo | LCM , a-Si TFT-LCD |
| Mwangaza | |
| CR | 1000:1 |
| Rangi | 16.7M |
| Mwangaza nyuma | 4 |
| Kiolesura | LVDS |
| mtengenezaji | BOE |
| jina la mfano | AV123Z7M-N1C 1 Compatible |
| ukubwa wa skrini | 12.3 inch |
| aina ya skrini | LCM , a-Si TFT-LCD |
| nambari ya pixel | 1920(RGB)×720 167PPI |
| mpangilio | RGB Vertical Stripe |
| eneo amilifu(mm) | 292.032 × 109.512 (H×V) |
| muhtasari(mm) | 307 × 125.5 × 13.6 (H×V×D) |
| eneo la bezel(mm) | 295 × 112 (H×V) |
| matibabu | Antiglare, Hard coating (3H), Reflection 6.0% (Max.) |
| mwangaza | 800 cd/m² (Typ.) |
| uwiano wa utofautishaji | 1000 : 1 (Typ.) (TM) |
| angle ya kutazama | 85/85/85/85 (Typ.)(CR≥10) |
| majibu | 30 (Typ.)(Tr+Td) ms |
| mtazamo mzuri | Symmetry |
| hali ya kazi | FFS, Normally Black, Transmissive |
| kina cha rangi | 16.7M 70% NTSC |
| backlight | 4 strings WLED , 30K hours , No Driver |
| wingi | TBD |
| kutumika kwa | Outdoor High Brightness Automotive Display |
| kiwango cha upya | 60Hz |
| skrini ya kugusa | - |

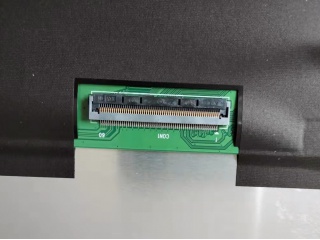

| aina ya ishara | LVDS (2 ch, 8-bit) , 60 pins Connector |
| usambazaji wa voltage | 3.3/3.3V (Typ.)(VDD/VDDA) |
| max. ukadiriaji | Storage Temp.: -40 ~ 90 °C Operating Temp.: -30 ~ 85 °C |
| AV123Z7M-N11 | BOE | 12.3 | 1920×720 |
| C123HAN01.0 | AUO | 12.3 | 1920×720 |
| LA123WF1-SL01 | LG Display | 12.3 | 1920×720 |
| LAM1233548D | JDI | 12.3 | 1920×720 |
| LD123UX1-SMA1 | LG Display | 12.3 | 1600×1200 |
| LQ123K3LG01 | SHARP | 12.3 | 1280×480 |
| TJ123NP01AA | TPO | 12.3 | 1280×480 |
| TJ123NP01BA | Innolux | 12.3 | 1280×480 |
| TJ123NP01CA | Innolux | 12.3 | 1280×480 |
| TX31D200VM0BAA | KOE | 12.3 | 1280×480 |
