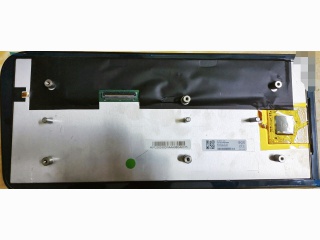

| Nambari ya Sehemu | AV123Z7T-A19-D8P0 |
| Chapa | BOE |
| Ukubwa | 12.3 |
| Maombi | Outdoor High Brightn |
| Azimio | 1920×720 |
| Muundo | LCM, a-Si TFT-LCD |
| Mwangaza | |
| CR | 1100:1 |
| Rangi | 16.7M |
| Mwangaza nyuma | 9S4P |
| Kiolesura | LVDS |
| mtengenezaji | BOE |
| jina la mfano | AV123Z7T-A19-D8P0 |
| ukubwa wa skrini | 12.3 inch |
| aina ya skrini | LCM, a-Si TFT-LCD |
| nambari ya pixel | 1920(RGB)×720 167PPI |
| mpangilio | RGB Vertical Stripe |
| eneo amilifu(mm) | 292.032 × 109.512 (H×V) |
| muhtasari(mm) | 345.19 × 149.1 × 27.93 (H×V×D) |
| eneo la bezel(mm) | - |
| matibabu | Anti Fingerprint + Antiglare, Hard coating (3H) |
| mwangaza | 850 cd/m² (Typ.) |
| uwiano wa utofautishaji | 1100 : 1 (Typ.) (TM) |
| angle ya kutazama | 80/80/80/80 (Typ.)(CR≥10) |
| majibu | 25 (Max.)(Tr+Td) ms |
| mtazamo mzuri | Symmetry |
| hali ya kazi | IPS, Normally Black, Transmissive |
| kina cha rangi | 16.7M 80% NTSC |
| backlight | 9S4P WLED , 50K hours , No Driver |
| wingi | - |
| kutumika kwa | Outdoor High Brightness Automotive Display |
| kiwango cha upya | 60Hz |
| skrini ya kugusa | PCAP |
| aina ya ishara | LVDS (2 ch, 8-bit) , Connector 60 pins |
| usambazaji wa voltage | 3.3V (Typ.) |
| max. ukadiriaji | Storage Temp.: -40 ~ 90 °C Operating Temp.: -30 ~ 85 °C |
