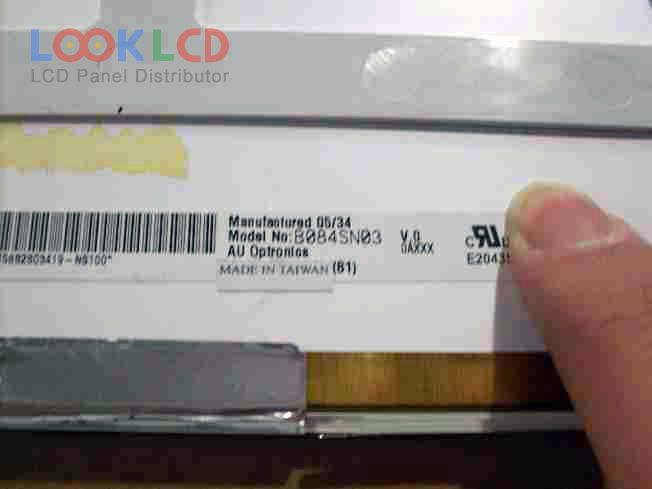

| Nambari ya Sehemu | B084SN03 V0 |
| Chapa | AUO |
| Ukubwa | 8.4 |
| Maombi | IA |
| Azimio | 800×600 |
| Muundo | LCM |
| Mwangaza | 220 |
| CR | 350:1 |
| Rangi | 262K |
| Mwangaza nyuma | CCFL |
| Kiolesura | LVDS |
| chapa ya paneli | AU Optronics |
| mfano wa paneli | B084SN03 V0 |
| aina ya paneli | a-Si TFT-LCD , LCM |
| saizi ya paneli | 8.4 inch |
| azimio | 800(RGB)×600 , SVGA |
| hali ya kuonyesha | TN, Normally White, Transmissive |
| eneo la kazi | 170.4×127.8 mm |
| muhtasari | 203×142.5 mm |
| uso | |
| mwangaza | 220 cd/m² (Typ.) |
| uwiano wa utofautishaji | 350:1 (Typ.) |
| kuonyesha rangi | 262K (6-bit) |
| wakati wa majibu | 10/25 (Typ.)(Tr/Td) |
| angle ya kutazama | 60/60/60/40 (Typ.)(CR≥10)(L/R/U/D) |
| aina ya taa | 1 pcsCCFLWithout Driver |
| kiolesura cha ishara | LVDS (1 ch, 6-bit), 20 pins |
| voltage ya pembejeo | 3.3V (Typ.) |
| maombi | IA |
