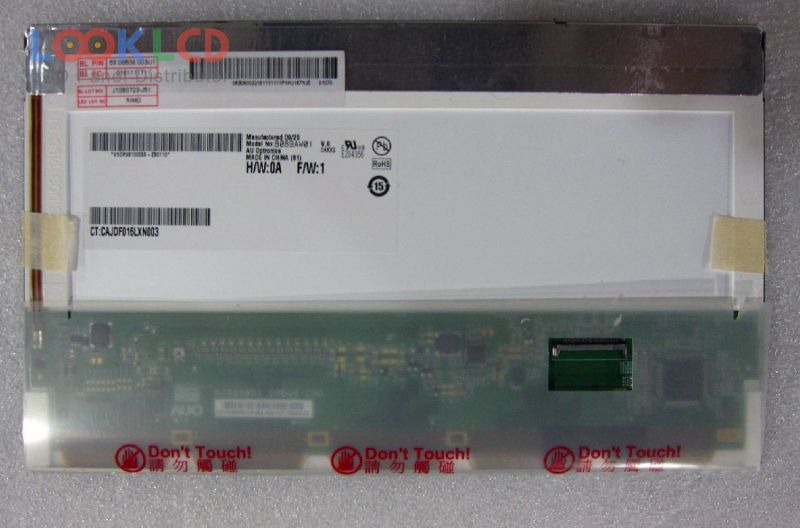

| Nambari ya Sehemu | B089AW01 V0 |
| Chapa | AUO |
| Ukubwa | 8.9 |
| Maombi | NOPC |
| Azimio | 1024×600 |
| Muundo | LCM |
| Mwangaza | 180 |
| CR | 300:1 |
| Rangi | 262K |
| Mwangaza nyuma | WLED |
| Kiolesura | LVDS |
| chapa ya paneli | AUO |
| mfano wa paneli | B089AW01 V0 8 Compatible model |
| aina ya paneli | a-Si TFT-LCD , LCM |
| saizi ya paneli | 8.9 inch |
| azimio | 1024(RGB)×600 , WSVGA |
| hali ya kuonyesha | TN, Normally White, Transmissive |
| eneo la kazi | 195.072×113.4 mm |
| muhtasari | 213.4×129.6×5.45 mm |
| uso | Antiglare |
| mwangaza | 180 cd/m² (Typ.) |
| uwiano wa utofautishaji | 300:1 (Typ.) |
| kuonyesha rangi | 262K (6-bit) |
| wakati wa majibu | 12/18 (Typ.)(Tr/Td) |
| angle ya kutazama | 45/45/15/35 (Typ.)(CR≥10)(L/R/U/D) |
| masafa | 60Hz |
| aina ya taa | 3S8PWLEDEmbedded (LED Driver) |
| kiolesura cha ishara | LVDS (1 ch, 6-bit), 40 pins |
| voltage ya pembejeo | 3.3V (Typ.) |
| maombi | NOPC |
| B089AW01 V0 | AUO | 8.9 | 1024×600 |
| B089AW01 V1 | AUO | 8.9 | 1024×600 |
| B089AW01 V2 | AUO | 8.9 | 1024×600 |
| B089AW01 V3 | AUO | 8.9 | 1024×600 |
| HSD089IFW1-B00 | HannStar | 8.9 | 1024×600 |
| HSD089IFW1-D00 | HannStar | 8.9 | 1024×600 |
| LJ640U35 | SHARP | 8.9 | 640×400 |
| LTL089CL02-001 | Samsung | 8.9 | 1920×1200 |
| N089L6-L02 | Innolux | 8.9 | 1024×600 |
| N089L6-L03 | Innolux | 8.9 | 1024×600 |
| B101AW01 V0 HW5A | AUO | 10.1 | 1024×576 |
| B116XW05 V001 | AUO | 11.6 | 1366×768 |
| BT101IW01 V.0 | Innolux | 10.1 | 1024×600 |
| BT101IW04 V.0 | Innolux | 10.1 | 1024×600 |
| LP101WSA-TLB1 | LG Display | 10.1 | 1024×600 |
| LTN101NT06-W01 | Samsung | 10.1 | 1024×600 |
| LTN101NT08-T01 | Samsung | 10.1 | 1024×600 |
| N089A1-L01 | Innolux | 8.9 | 1280×768 |
| N101N6-L01 | Innolux | 10.1 | 1024×576 |
| N116BGE-L42 | Innolux | 11.6 | 1366×768 |
