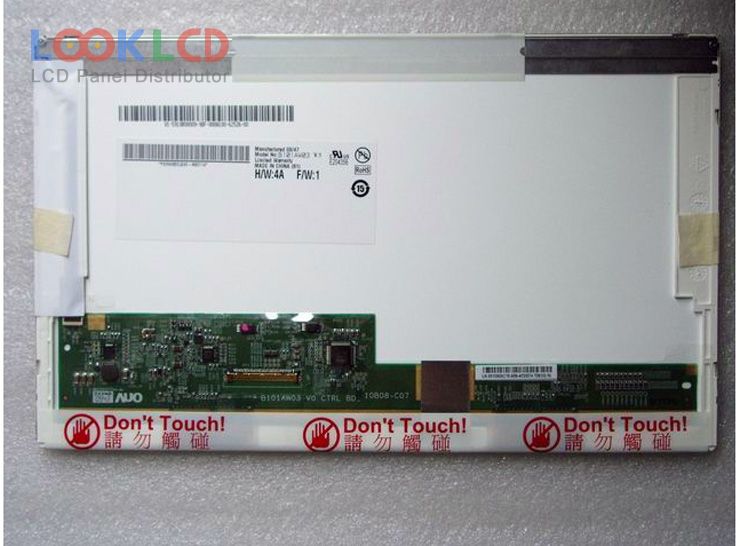

| Nambari ya Sehemu | B101AW03 V1 |
| Chapa | AUO |
| Ukubwa | 10.1 |
| Maombi | NOPC |
| Azimio | 1024×600 |
| Muundo | LCM |
| Mwangaza | 200 |
| CR | 400:1 |
| Rangi | 262K |
| Mwangaza nyuma | WLED |
| Kiolesura | LVDS |
| chapa ya paneli | AUO |
| mfano wa paneli | B101AW03 V1 9 Compatible model |
| aina ya paneli | a-Si TFT-LCD , LCM |
| saizi ya paneli | 10.1 inch |
| azimio | 1024(RGB)×600 , WSVGA |
| hali ya kuonyesha | TN, Normally White, Transmissive |
| eneo la kazi | 222.72×125.28 mm |
| muhtasari | 235×143×5.2 mm |
| mtindo wa sura | Wedge (PCBA Bent, Depth ≥5.2mm) |
| uso | Antiglare |
| mwangaza | 200 cd/m² (Typ.) |
| uwiano wa utofautishaji | 400:1 (Typ.) |
| kuonyesha rangi | 262K (6-bit), CIE193145% |
| wakati wa majibu | 16 (Typ.)(Tr+Td) |
| angle ya kutazama | 45/45/15/35 (Typ.)(CR≥10)(L/R/U/D) |
| masafa | 60Hz |
| aina ya taa | WLEDEmbedded (LED Driver) |
| kiolesura cha ishara | LVDS (1 ch, 6-bit), 40 pins |
| voltage ya pembejeo | 3.3V (Typ.) |
| maombi | NOPC |
| B101AW01 V0 HW5A | AUO | 10.1 | 1024×576 |
| B101AW01 V2 HW0A | AUO | 10.1 | 1024×576 |
| B101AW01 V2 HW5A | AUO | 10.1 | 1024×576 |
| B101AW02 V0 | AUO | 10.1 | 1024×600 |
| B101AW03 V0 | AUO | 10.1 | 1024×600 |
| B101AW03 V1 | AUO | 10.1 | 1024×600 |
| B101AW06 V1 HW0A | AUO | 10.1 | 1024×600 |
| B101AW06 V1 HW1A | AUO | 10.1 | 1024×600 |
| B101AW06 V4 | AUO | 10.1 | 1024×600 |
| A089SW01 V1 | AUO | 8.9 | 1024×600 |
| B116XTN02.3 HW0A | AUO | 11.6 | 1366×768 |
| B116XW02 V1 | AUO | 11.6 | 1366×768 |
| B116XW05 V001 | AUO | 11.6 | 1366×768 |
| BT101IW02 V.0 | Innolux | 10.1 | 1024×600 |
| HSD070PFW1-A00 | HannStar | 7.0 | 1024×600 |
| LP101WSA-TLA1 | LG Display | 10.1 | 1024×600 |
| LTN116AT01-801 | Samsung | 11.6 | 1366×768 |
| LTN116AT01-A01 | Samsung | 11.6 | 1366×768 |
| N089A1-L01 | Innolux | 8.9 | 1280×768 |
