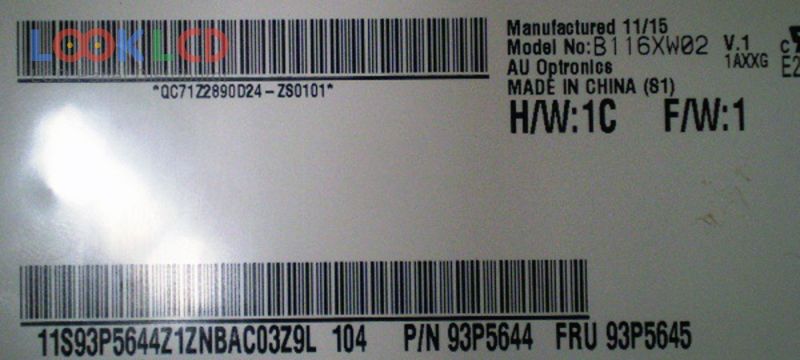

| Nambari ya Sehemu | B116XW02 V1 |
| Chapa | AUO |
| Ukubwa | 11.6 |
| Maombi | NOPC |
| Azimio | 1366×768 |
| Muundo | LCM |
| Mwangaza | 200 |
| CR | 500:1 |
| Rangi | 262K |
| Mwangaza nyuma | WLED |
| Kiolesura | LVDS |
| chapa ya paneli | AUO |
| mfano wa paneli | B116XW02 V1 1 Compatible model |
| aina ya paneli | a-Si TFT-LCD , LCM |
| saizi ya paneli | 11.6 inch |
| azimio | 1366(RGB)×768 , WXGA |
| hali ya kuonyesha | TN, Normally White, Transmissive |
| eneo la kazi | 256.125×144 mm |
| muhtasari | 268×161.5×5.2 mm |
| mtindo wa sura | Wedge (PCBA Bent, Depth ≥5.2mm) |
| uso | Antiglare, Hard coating (3H) |
| mwangaza | 200 cd/m² (Typ.) |
| uwiano wa utofautishaji | 500:1 (Typ.) |
| kuonyesha rangi | 262K (6-bit), CIE193145% |
| wakati wa majibu | 3/5 (Typ.)(Tr/Td) |
| angle ya kutazama | 45/45/20/45 (Typ.)(CR≥10)(L/R/U/D) |
| masafa | 60Hz |
| aina ya taa | WLEDEmbedded (LED Driver) |
| kiolesura cha ishara | LVDS (1 ch, 6-bit), 40 pins |
| voltage ya pembejeo | 3.3V (Typ.) |
| maombi | NOPC |
| B116XAN03.1 HW0A | AUO | 11.6 | 1366×768 |
| B116XAN03.1 HW1A | AUO | 11.6 | 1366×768 |
| B116XTK01.1 | AUO | 11.6 | 1366×768 |
| B116XTN01.0 HW1A | AUO | 11.6 | 1366×768 |
| B116XTN02.3 HW4A | AUO | 11.6 | 1366×768 |
| B116XTT01.0 | AUO | 11.6 | 1366×768 |
| B116XW02 V0 | AUO | 11.6 | 1366×768 |
| B116XW03 V0 | AUO | 11.6 | 1366×768 |
| B116XW05 V0 | AUO | 11.6 | 1366×768 |
| B116XW05 V001 | AUO | 11.6 | 1366×768 |
| B089AW01 V3 | AUO | 8.9 | 1024×600 |
| B116XW02 V1 | AUO | 11.6 | 1366×768 |
| B116XW05 V001 | AUO | 11.6 | 1366×768 |
| CLAA101NB03A | CPT | 10.1 | 1024×600 |
| CLAA101NC01CW | CPT | 10.1 | 1024×600 |
| LP101WS1-TLB2 | LG Display | 10.1 | 1024×576 |
| LP116WH4-TJA3 | LG Display | 11.6 | 1366×768 |
| LTN116AT07-B01 | Samsung | 11.6 | 1366×768 |
| N116BGE-L41 | Innolux | 11.6 | 1366×768 |
| SVA101WV1(01TA)(A) | SVA-NEC | 10.0 | 1024×576 |
