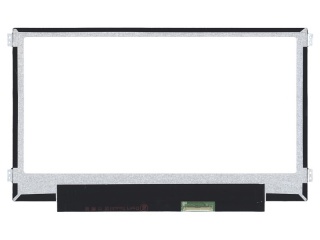

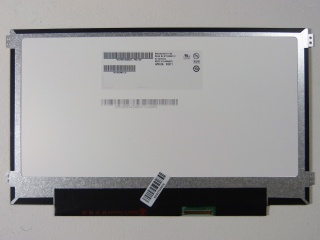

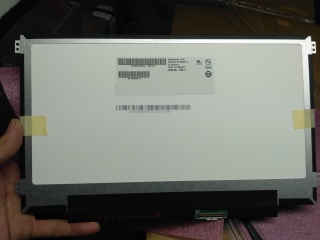

| Nambari ya Sehemu | B116XAK01.2 |
| Chapa | AUO |
| Ukubwa | 11.6 |
| Maombi | Laptop |
| Azimio | 1366×768 |
| Muundo | LCM , a-Si TFT-LCD |
| Mwangaza | |
| CR | 800:1 |
| Rangi | 262K |
| Mwangaza nyuma | WLED |
| Kiolesura | eDP |
| mtengenezaji | AUO |
| ukubwa wa skrini | 11.6 inch |
| nambari ya pixel | 1366(RGB)×768 (WXGA) 135PPI |
| eneo amilifu(mm) | 256.125 × 144 (H×V) |
| eneo la bezel(mm) | - |
| mwangaza | 235 cd/m² (Typ.) |
| angle ya kutazama | 85/85/85/85 (Typ.)(CR≥10) |
| mtazamo mzuri | Symmetry |
| kina cha rangi | 262K 50% NTSC |
| umbo la muhtasari | Slim (PCBA Flat, T≤3.2mm) |
| kiwango cha upya | 60Hz |
| aina ya ishara | eDP (1 Lane) , eDP1.2 , 40 pins Connector |
| usambazaji wa voltage | 3.3V (Typ.) |
| max. ukadiriaji | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 60 °C |
| jina la mfano | B116XAK01.2 (AUO125C) |
| aina ya skrini | LCM , a-Si TFT-LCD |
| mpangilio | RGB Vertical Stripe |
| muhtasari(mm) | 278 × 168.02 × 3.2 (H×V×D) |
| matibabu | Antiglare, Hard coating (3H) |
| uwiano wa utofautishaji | 800 : 1 (Typ.) (TM) |
| majibu | 27 (Typ.)(Tr+Tf) ms |
| hali ya kazi | AHVA, Normally Black, Transmissive |
| backlight | WLED , 15K hours , With LED Driver |
| kutumika kwa | Laptop |
| skrini ya kugusa | On-Cell Touch |
