| Nambari ya Sehemu | C070VW04 V6 |
| Chapa | AUO |
| Ukubwa | 7.0 |
| Maombi | CNS |
| Azimio | 800×480 |
| Muundo | LCM |
| Mwangaza | 450 |
| CR | 600:1 |
| Rangi | 262K |
| Mwangaza nyuma | WLED |
| Kiolesura | TTL |
| chapa ya paneli | AUO |
| mfano wa paneli | C070VW04 V6 |
| aina ya paneli | a-Si TFT-LCD , LCM |
| saizi ya paneli | 7.0 inch |
| azimio | 800(RGB)×480 , WVGA |
| hali ya kuonyesha | AMVA, Normally Black, Transmissive |
| eneo la kazi | 152.4×91.44 mm |
| muhtasari | 164.55×105.1×8.78 mm |
| uso | Glare (Haze 0%), Antireflection |
| mwangaza | 450 cd/m² (Typ.) |
| uwiano wa utofautishaji | 600:1 (Typ.) |
| kuonyesha rangi | 262K (6-bit), CIE193155% |
| wakati wa majibu | 10/25 (Typ.)(Tr/Td) |
| angle ya kutazama | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| masafa | 60Hz |
| aina ya taa | 6S3PWLEDWithout Driver |

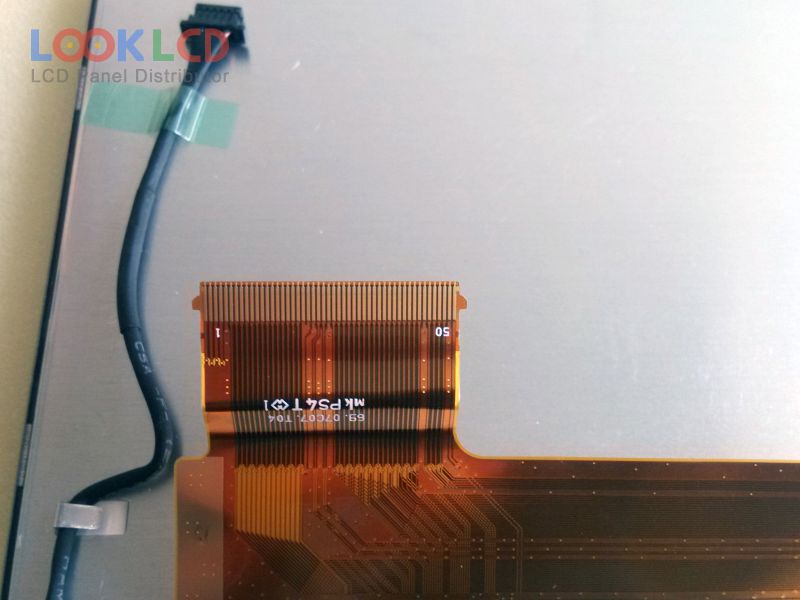

| kiolesura cha ishara | Parallel RGB (1 ch, 6-bit), 50 pins |
| voltage ya pembejeo | 3.3/12.5/15.0/-9.0V (Typ.)(VDD/AVDD/VGH/VGL) |
| maombi | CNS |
