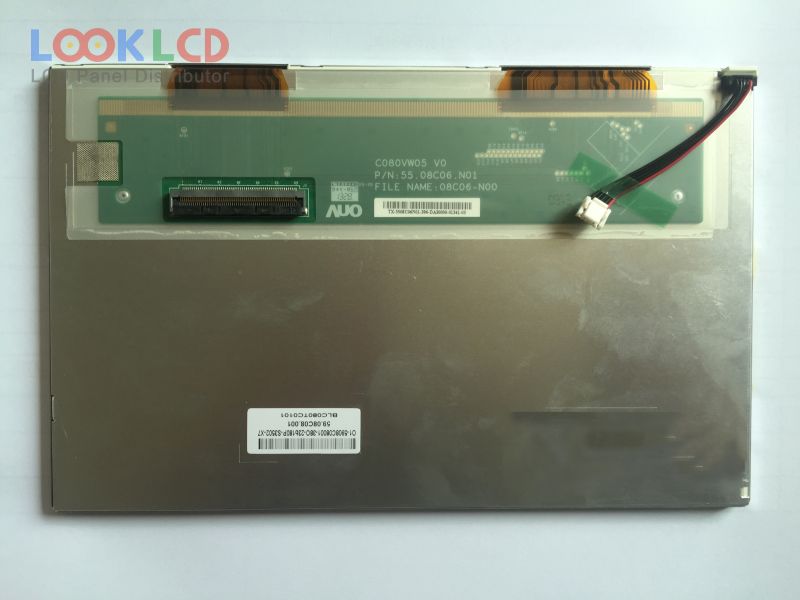

| Nambari ya Sehemu | C080VW05 V0 |
| Chapa | AUO |
| Ukubwa | 8.0 |
| Maombi | CNS |
| Azimio | 800×480 |
| Muundo | LCM |
| Mwangaza | 500 |
| CR | 300:1 |
| Rangi | 262K |
| Mwangaza nyuma | WLED |
| Kiolesura | TTL |
| chapa ya paneli | AUO |
| mfano wa paneli | C080VW05 V0 |
| aina ya paneli | a-Si TFT-LCD , LCM |
| saizi ya paneli | 8.0 inch |
| azimio | 800(RGB)×480 , WVGA |
| hali ya kuonyesha | TN, Normally White, Transmissive |
| eneo la kazi | 175.2×105.12 mm |
| muhtasari | 186.5×117.22 mm |
| uso | Antiglare |
| mwangaza | 500 cd/m² (Typ.) |
| uwiano wa utofautishaji | 300:1 (Typ.) |
| kuonyesha rangi | 262K (6-bit) |
| wakati wa majibu | 15/20 (Typ.)(Tr/Td) |
| angle ya kutazama | 60/60/40/60 (Typ.)(CR≥10)(L/R/U/D) |
| masafa | 60Hz |
| aina ya taa | 4S4PWLEDWithout Driver |
| kiolesura cha ishara | Parallel RGB (1 ch, 6-bit), 60 pins |
| voltage ya pembejeo | 3.3/10.0/15.0/-10.0V (Typ.)(VCC/AVDD/VGH/VGL) |
| maombi | CNS |
| A080SN03 V3 | AUO | 8.0 | 800×600 |
| C080VW02 V0 | AUO | 8.0 | 800×480 |
| C080VW03 V0 | AUO | 8.0 | 800×480 |
| C080VW04 V0 | AUO | 8.0 | 800×480 |
| C080VW05 V0 | AUO | 8.0 | 800×480 |
| CLAA080WQ02 XN | CPT | 8.0 | 800×1280 |
| LB080WV6-TA03 | LG Display | 8.0 | 800×480 |
| LS800JT9001 | Innolux | 8.0 | 800×600 |
| TM080VG-22L01 | SANYO | 8.0 | 640×480 |
| TM080XPH01 | Tianma | 8.0 | 1280×768 |
| 70WVW1A | SII | 7.0 | 800×480 |
| C070VTN01.0 | AUO | 7.0 | 800×480 |
| C070VW04 V7 | AUO | 7.0 | 800×480 |
| CLAA070JA1BCW | CPT | 7.0 | 480×234 |
| HT07W12-200 | HYDIS | 7.0 | 480×234 |
| LB080WV6-TA03 | LG Display | 8.0 | 800×480 |
| LQ035Q5DG01 | SHARP | 3.5 | 320×240 |
| LQ064A5CG01 | SHARP | 6.4 | 480×234 |
| LQ065Y5DZ01 | SHARP | 6.5 | 800×480 |
| LTE052T-45 | Philips | 5.0 | 320×234 |
