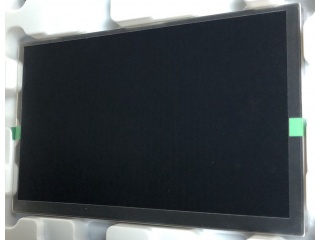

| Nambari ya Sehemu | CLAA070LQ02 XN |
| Chapa | CPT |
| Ukubwa | 7.0 |
| Maombi | Automotive Display |
| Azimio | 800×480 |
| Muundo | LCM, a-Si TFT-LCD |
| Mwangaza | |
| CR | 900:1 |
| Rangi | 262K/16.7M |
| Mwangaza nyuma | 7S2P |
| Kiolesura | LVDS |
| mtengenezaji | CPT |
| jina la mfano | CLAA070LQ02 XN |
| ukubwa wa skrini | 7.0 inch |
| aina ya skrini | LCM, a-Si TFT-LCD |
| nambari ya pixel | 800(RGB)×480 (WVGA) 133PPI |
| mpangilio | RGB Vertical Stripe |
| eneo amilifu(mm) | 152.4 × 91.44 (H×V) |
| muhtasari(mm) | 165 × 104 × 7.3 (H×V×D) |
| eneo la bezel(mm) | 154.4 × 93.44 (H×V) |
| matibabu | Antiglare (Haze 25%) |
| mwangaza | 760 cd/m² (Typ.) |
| uwiano wa utofautishaji | 900 : 1 (Typ.) (TM) |
| angle ya kutazama | 85/85/85/85 (Typ.)(CR≥10) |
| majibu | 25 (Typ.)(Tr+Tf) ms |
| mtazamo mzuri | Symmetry |
| hali ya kazi | HFFS, Normally Black, Transmissive |
| kina cha rangi | 262K/16.7M 70% NTSC |
| backlight | 7S2P WLED , 30K hours , No Driver |
| wingi | 175g (Typ.) |
| kutumika kwa | Automotive Display |
| kiwango cha upya | 60Hz |
| skrini ya kugusa | Without |
| aina ya ishara | LVDS (1 ch, 6/8-bit) , FPC 60 pins |
| usambazaji wa voltage | 3.3/13.0/20.0/-6.0V (Typ.)(DVDD/AVDD/VGH/VGL) |
| max. ukadiriaji | Storage Temp.: -40 ~ 90 °C Operating Temp.: -30 ~ 85 °C ; Vibration Level: 2.9G (28.4 m/s²) |
