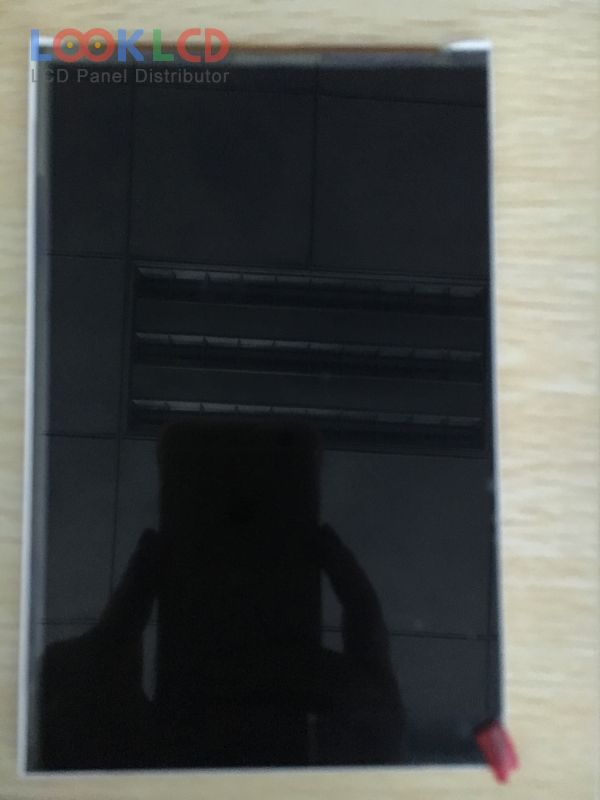

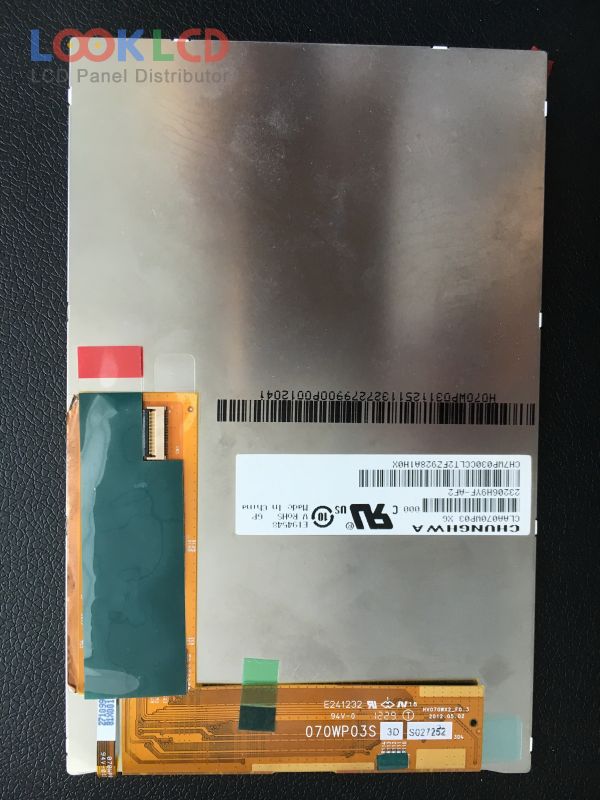

| Nambari ya Sehemu | CLAA070WP03 |
| Chapa | CPT |
| Ukubwa | 7.0 |
| Maombi | PAD |
| Azimio | 800×1280 |
| Muundo | LCM |
| Mwangaza | 450 |
| CR | 700:1 |
| Rangi | 262K |
| Mwangaza nyuma | WLED |
| Kiolesura | LVDS |
| chapa ya paneli | CPT |
| mfano wa paneli | CLAA070WP03 |
| aina ya paneli | a-Si TFT-LCD , LCM |
| saizi ya paneli | 7.0 inch |
| azimio | 800(RGB)×1280 , WXGA |
| hali ya kuonyesha | HFFS, Normally Black, Transmissive |
| eneo la kazi | 94.2×150.72 mm |
| muhtasari | 104.32×161.67×4.05 mm |
| uso | Hard coating (3H) |
| mwangaza | 450 cd/m² (Typ.) |
| uwiano wa utofautishaji | 700:1 (Typ.) |
| kuonyesha rangi | 262K (6-bit), CIE193160% |
| wakati wa majibu | 30 (Typ.)(Tr+Td) |
| angle ya kutazama | 85/85/85/85 (Min.)(CR≥10)(L/R/U/D) |
| masafa | 60Hz |
| aina ya taa | WLEDEmbedded (LED Driver) |
| kiolesura cha ishara | LVDS (1 ch, 6-bit), 31 pins |
| voltage ya pembejeo | 3.3V (Typ.) |
| maombi | PAD |
| CLAA048LA0ACT | CPT | 4.8 | 800×480 |
| CLAA061LA0ACW | CPT | 6.1 | 800×480 |
| CLAA061LA0DCW | CPT | 6.1 | 800×480 |
| CLAA069LC01XW | CPT | 7.0 | 800×480 |
| CLAA070LFA1 CW | CPT | 7.0 | 800×480 |
| CLAA070NC0DCT | CPT | 7.0 | 1024×600 |
| CLAA070NC0DCW | CPT | 7.0 | 1024×600 |
| CLAA070NJ07CW | CPT | 7.0 | 1024×600 |
| CLAA089NA0FCW | CPT | 8.9 | 1024×600 |
| CLAA098EP01XG | CPT | 9.8 | 1280×960 |
| B101EAN01.6 | AUO | 10.1 | 1280×800 |
| BP082WX1-100 | BOE | 8.2 | 1280×800 |
| CLAA080WQ05 | CPT | 8.0 | 800×1280 |
| CLAA101WJ02 | CPT | 10.1 | 1366×768 |
| HV121P01-100 | HYDIS | 12.1 | 1400×1050 |
| HV121WX5-110 | HYDIS | 12.1 | 1280×800 |
| LD070WU2-SH01 | LG Display | 7.0 | 1200×1920 |
| N080ICE-GB0 Rev.B1 | Innolux | 8.0 | 800×1280 |
| N080JCE-G41 | Innolux | 8.0 | 1200×1920 |
| VVX07H005A00 | Panasonic | 7.0 | 800×1280 |
