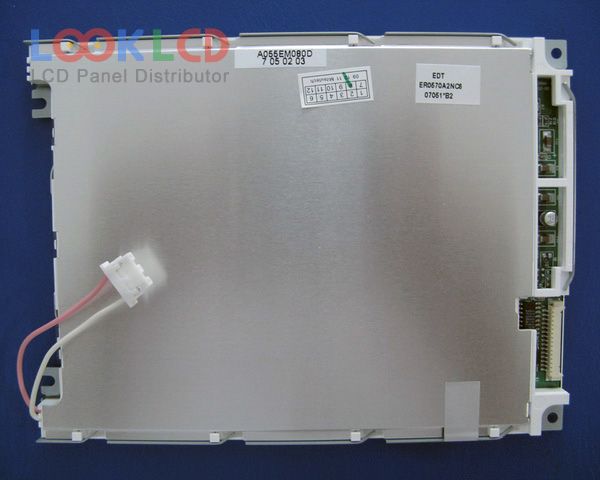

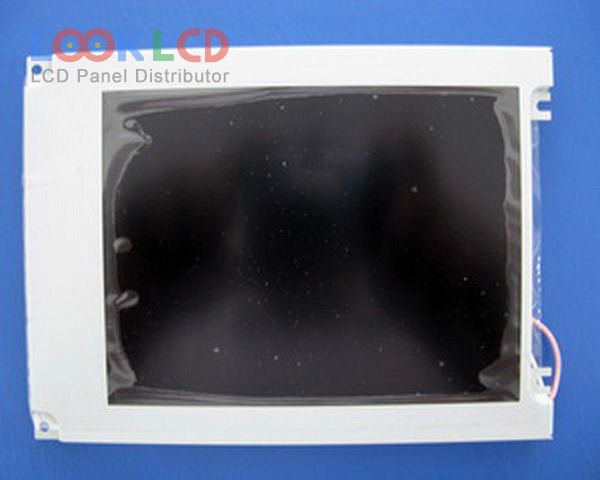

| Nambari ya Sehemu | ER0570A2NC6 |
| Chapa | EDT |
| Ukubwa | 5.7 |
| Maombi | IA |
| Azimio | 320×240 |
| Muundo | LCM |
| Mwangaza | 180 |
| CR | 50:1 |
| Rangi | Color |
| Mwangaza nyuma | CCFL |
| Kiolesura | Parallel Data |
| chapa ya paneli | EDT |
| mfano wa paneli | ER0570A2NC6 |
| aina ya paneli | CSTN-LCD , LCM |
| saizi ya paneli | 5.7 inch |
| azimio | 320(RGB)×240 , QVGA |
| hali ya kuonyesha | STN, Normally Black, Transmissive |
| eneo la kazi | 115.2×86.4 mm |
| muhtasari | 154.6×114.8×8.8 mm |
| uso | |
| mwangaza | 180 cd/m² (Typ.) |
| uwiano wa utofautishaji | 50:1 (Typ.) |
| kuonyesha rangi | Color |
| wakati wa majibu | 350/250 (Typ.)(Tr/Td) |
| angle ya kutazama | 45/45/20/38 (Typ.)(CR≥2)(L/R/U/D) |
| masafa | 120Hz |
| aina ya taa | 1 pcsCCFLWithout Driver |
| kiolesura cha ishara | Parallel Data (8-bit), 15 pins |
| voltage ya pembejeo | 3.0/5.0V (Typ.)(VDD) |
| maombi | IA |
