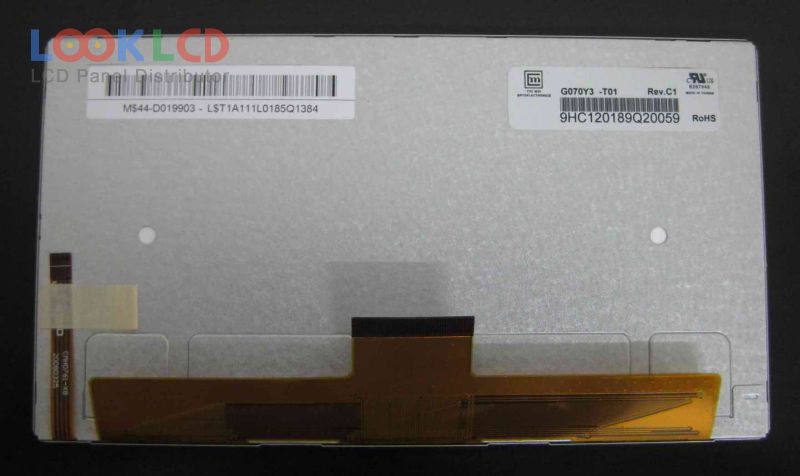

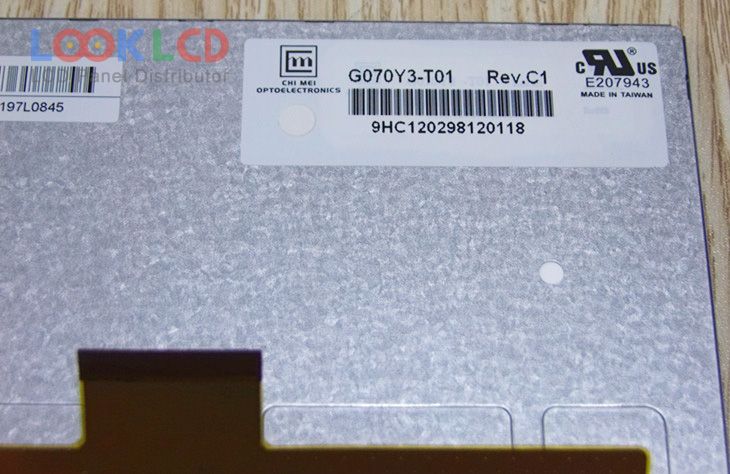

| Nambari ya Sehemu | G070Y3-T01 |
| Chapa | Innolux |
| Ukubwa | 7.0 |
| Maombi | IA |
| Azimio | 800×480 |
| Muundo | LCM |
| Mwangaza | 600 |
| CR | 650:1 |
| Rangi | 262K |
| Mwangaza nyuma | WLED |
| Kiolesura | TTL |
| chapa ya paneli | CMO |
| mfano wa paneli | G070Y3-T01 |
| aina ya paneli | a-Si TFT-LCD , LCM |
| saizi ya paneli | 7.0 inch |
| azimio | 800(RGB)×480 , WVGA |
| hali ya kuonyesha | TN, Normally White, Transmissive |
| eneo la kazi | 156×82.8 mm |
| muhtasari | 168×94×6.65 mm |
| uso | Antiglare (Haze 25%), Hard coating (3H) |
| mwangaza | 600 cd/m² (Typ.) |
| uwiano wa utofautishaji | 650:1 (Typ.) |
| kuonyesha rangi | 262K (6-bit), CIE193160% |
| wakati wa majibu | 5/11 (Typ.)(Tr/Td) |
| angle ya kutazama | 70/70/60/60 (Typ.)(CR≥10)(L/R/U/D) |
| masafa | 60Hz |
| aina ya taa | 9S3PWLEDWithout Driver |
| kiolesura cha ishara | TTL (1 ch, 6-bit), 50 pins |
| voltage ya pembejeo | 3.3/10.5/18/-7V (Typ.)(VCC/AVDD/VGH/VGL) |
| maombi | IA |
