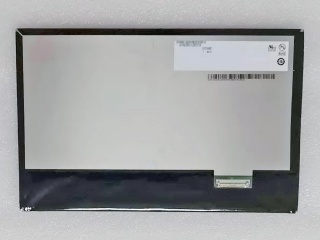

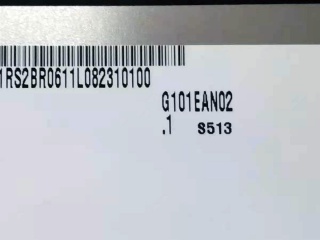

| Nambari ya Sehemu | G101EAN02.1 |
| Chapa | AUO |
| Ukubwa | 10.1 |
| Maombi | Industrial |
| Azimio | 1280×800 |
| Muundo | a-Si TFT-LCD , LCM |
| Mwangaza | |
| CR | 800:1 |
| Rangi | 16.7M |
| Mwangaza nyuma | WLED |
| Kiolesura | LVDS |
| chapa | AUO |
| ukubwa wa diagonal | 10.1 inch |
| muundo wa pixel | 1280(RGB)×800 [WXGA] 149PPI |
| eneo la kazi | 216.96(H)×135.6(V) mm |
| eneo la bezel | - |
| mwangaza | 400 cd/m² (Typ.) |
| tazama mwelekeo | Symmetry |
| angle ya kutazama | 89/89/89/89 (Typ.)(CR≥10) |
| rangi ya msaada | 16.7M 50% NTSC |
| uzito | 195g (Max.) |
| kiwango cha fremu | 60Hz |
| aina ya kiolesura | LVDS (1 ch, 8-bit) , 40 pins Connector |
| usambazaji wa nguvu | 3.3V (Typ.) |
| mazingira | Operating Temperature: -20 ~ 60 °C ; Storage Temperature: -20 ~ 60 °C |
| mfano | G101EAN02.1 |
| aina | a-Si TFT-LCD , LCM |
| usanidi | RGB Vertical Stripe |
| muhtasari dim. | 227.72(H)×147.8(V) ×4.8(D) mm |
| matibabu | Hard coating |
| uwiano wa utofautishaji | 800:1 (Typ.) (TM) |
| wakati wa majibu | 29 (Typ.)(Tr+Td) |
| hali ya uendeshaji | AHVA, Normally Black, Transmissive |
| chanzo cha mwanga | WLED , 30K hours , With LED Driver |
| iliyoundwa kwa ajili ya | Industrial |
| jopo la kugusa | Without |
