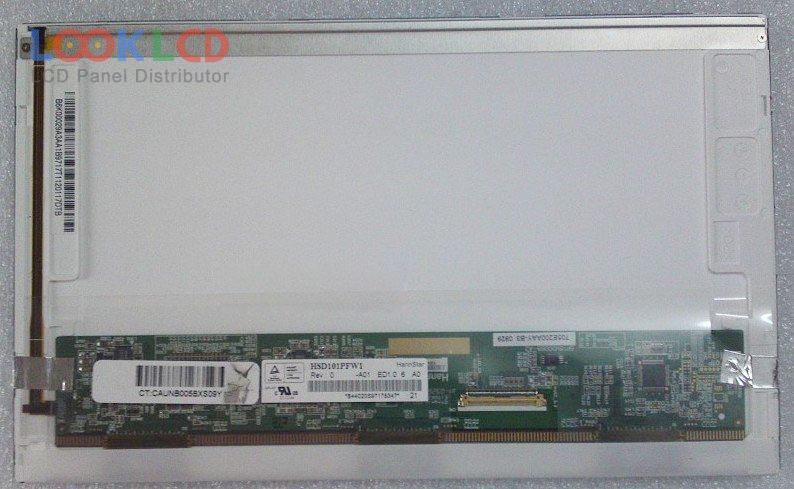

| Nambari ya Sehemu | HSD101PFW1-A01 |
| Chapa | HannStar |
| Ukubwa | 10.1 |
| Maombi | DPF |
| Azimio | 1024×576 |
| Muundo | LCM |
| Mwangaza | 200 |
| CR | 500:1 |
| Rangi | 262K |
| Mwangaza nyuma | WLED |
| Kiolesura | LVDS |
| chapa ya paneli | HannStar |
| mfano wa paneli | HSD101PFW1-A01 5 Compatible model |
| aina ya paneli | a-Si TFT-LCD , LCM |
| saizi ya paneli | 10.1 inch |
| azimio | 1024(RGB)×576 , WSVGA |
| hali ya kuonyesha | TN, Normally White, Transmissive |
| eneo la kazi | 222.72×125.28 mm |
| muhtasari | 235×143×5.2 mm |
| uso | Antiglare, Hard coating (3H) |
| mwangaza | 200 cd/m² (Typ.) |
| uwiano wa utofautishaji | 500:1 (Typ.) |
| kuonyesha rangi | 262K (6-bit), CIE193150% |
| wakati wa majibu | 2/6 (Typ.)(Tr/Td) |
| angle ya kutazama | 45/45/15/35 (Typ.)(CR≥10)(L/R/U/D) |
| masafa | 60Hz |
| aina ya taa | 27 pcsWLEDEmbedded (LED Driver) |
| kiolesura cha ishara | LVDS (1 ch, 6-bit), 40 pins |
| voltage ya pembejeo | 3.3V (Typ.) |
| maombi | DPF |
| HSD101PFW1-A01 | HannStar | 10.1 | 1024×576 |
| HSD101PFW2-A00 | HannStar | 10.1 | 1024×600 |
| HSD101PFW2-C00 | HannStar | 10.1 | 1024×600 |
| HSD101PFW4-A00 | HannStar | 10.1 | 1024×600 |
| HSD101PFW4-B01 | HannStar | 10.1 | 1024×600 |
| HSD101PWW1-A00 | HannStar | 10.1 | 1280×800 |
| HSD101PWW1-B00-C11 | HannStar | 10.1 | 1280×800 |
| HSD101PWW1-F01 | HannStar | 10.1 | 1280×800 |
| HSD101PWW2-A00 | HannStar | 10.1 | 1280×800 |
| HSD101PWW2-A01 | HannStar | 10.1 | 1280×800 |
| A070FW03 VB | AUO | 7.0 | 480×234 |
| A101VW01 V1 | AUO | 10.1 | 800×480 |
| AT056TN53 V.1 | Innolux | 5.6 | 640×480 |
| AT090TN12 V.3 | Innolux | 9.0 | 800×480 |
| AT102TN03 V.9 | Innolux | 10.2 | 800×480 |
| CLAA104XA01CW | CPT | 10.4 | 1024×768 |
| HSD070ISN1-D00 | HannStar | 7.0 | 800×600 |
| HSD100IFW1-C01 | HannStar | 10.1 | 1024×600 |
| HSD101PFW4-A00 | HannStar | 10.1 | 1024×600 |
| LQ070Y3DG02 | SHARP | 7.0 | 800×480 |
