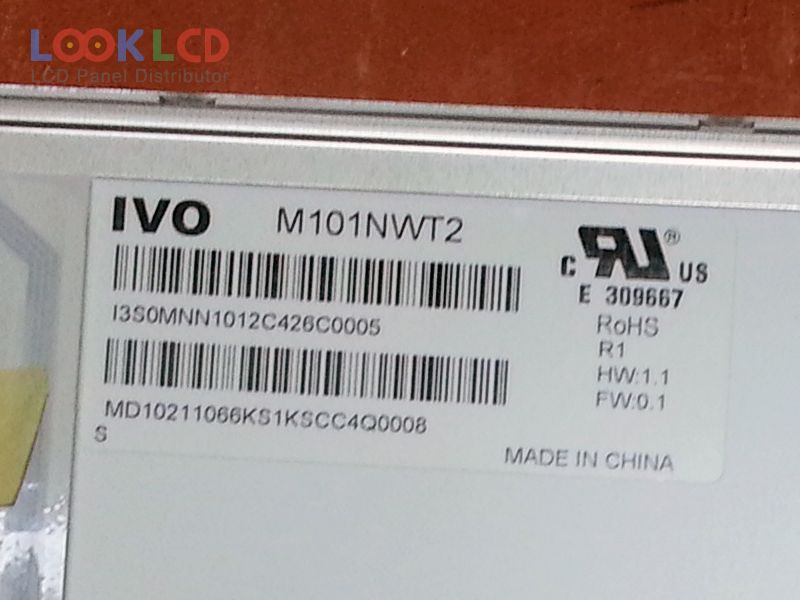

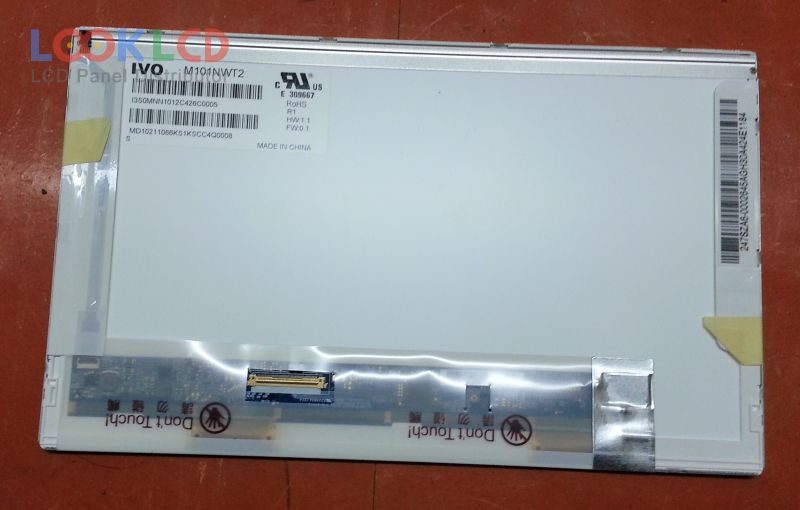

| Nambari ya Sehemu | M101NWT2 R1 |
| Chapa | IVO |
| Ukubwa | 10.1 |
| Maombi | NOPC |
| Azimio | 1024×600 |
| Muundo | LCM |
| Mwangaza | 200 |
| CR | 500:1 |
| Rangi | 262K |
| Mwangaza nyuma | WLED |
| Kiolesura | LVDS |
| chapa ya paneli | IVO |
| mfano wa paneli | M101NWT2 R1 |
| aina ya paneli | a-Si TFT-LCD , LCM |
| saizi ya paneli | 10.1 inch |
| azimio | 1024(RGB)×600 , WSVGA |
| hali ya kuonyesha | TN, Normally White, Transmissive |
| eneo la kazi | 222.72×125.28 mm |
| muhtasari | 235×143×5.2 mm |
| mtindo wa sura | Wedge (PCBA Bent, Depth ≥5.2mm) |
| uso | Glare (Haze 0%), Hard coating |
| mwangaza | 200 cd/m² (Typ.) |
| uwiano wa utofautishaji | 500:1 (Typ.) |
| kuonyesha rangi | 262K (6-bit), CIE193145% |
| wakati wa majibu | 3/5 (Typ.)(Tr/Td) |
| angle ya kutazama | 45/45/15/35 (Typ.)(CR≥10)(L/R/U/D) |
| masafa | 60Hz |
| aina ya taa | WLEDEmbedded (LED Driver) |

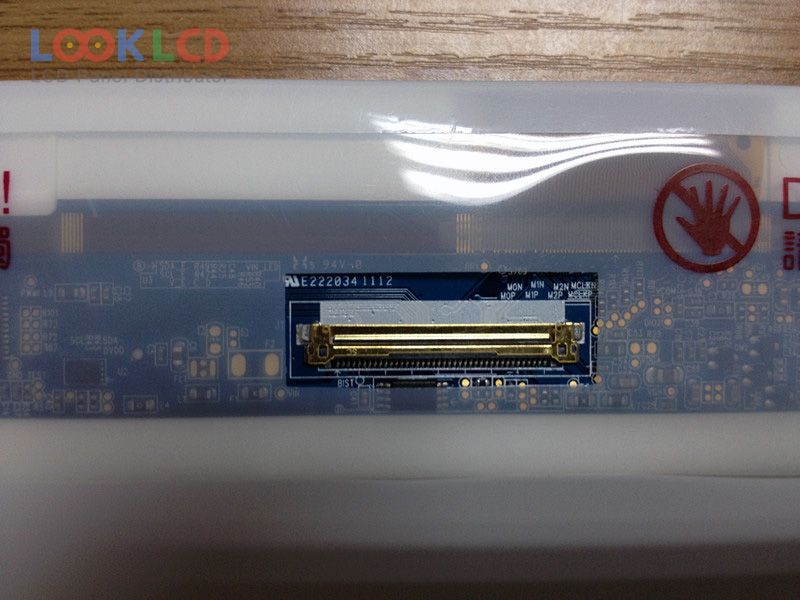

| kiolesura cha ishara | LVDS (1 ch, 6-bit), 40 pins |
| voltage ya pembejeo | 3.3V (Typ.) |
| maombi | NOPC |
| HSD101PUW1-A00 | HannStar | 10.1 | 1920×1200 |
| M101GWT9 R3 | IVO | 10.1 | 1024×600 |
| M101NWN8 R0 | IVO | 10.1 | 1366×768 |
| M101NWT2 R0 | IVO | 10.1 | 1024×600 |
| M101NWT2 R1 | IVO | 10.1 | 1024×600 |
| M101NWT2 R2 | IVO | 10.1 | 1024×600 |
| M101NWT2 R3 | IVO | 10.1 | 1024×600 |
| M101NWT4 R3 | IVO | 10.1 | 1024×600 |
| M101NWWB R6 | IVO | 10.1 | 1280×800 |
| M101NWWB R8 | IVO | 10.1 | 1280×800 |
| A089SW01 V1 | AUO | 8.9 | 1024×600 |
| B116XTN01.0 HW5A | AUO | 11.6 | 1366×768 |
| B116XW05 V0 | AUO | 11.6 | 1366×768 |
| HSD101PFW3-A00 | HannStar | 10.1 | 1024×600 |
| LP101WSA-TLB1 | LG Display | 10.1 | 1024×600 |
| LTN116AT07-B01 | Samsung | 11.6 | 1366×768 |
| M101NWT2 R0 | IVO | 10.1 | 1024×600 |
| N089L6-L03 | Innolux | 8.9 | 1024×600 |
| N101L6-L01 | Innolux | 10.1 | 1024×600 |
| N101L6-L0C | Innolux | 10.1 | 1024×600 |
