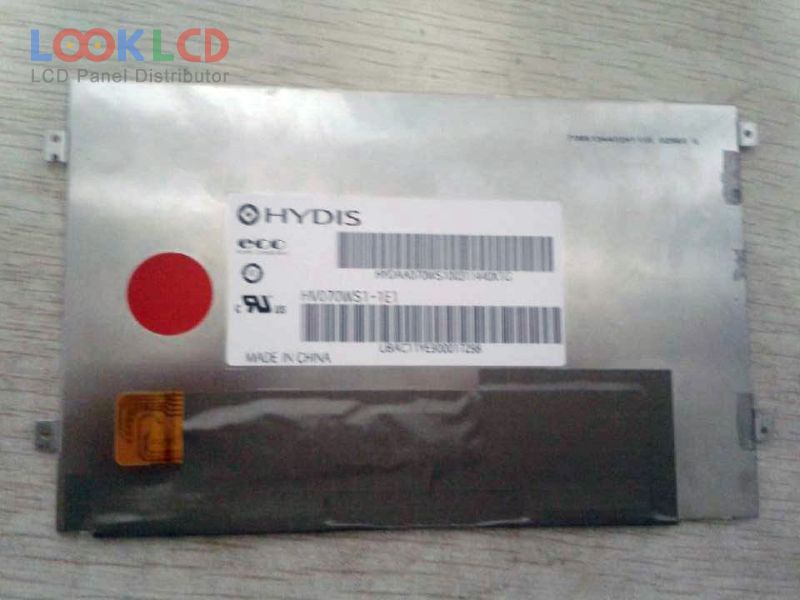

| Nambari ya Sehemu | HV070WS1-1E1 |
| Chapa | HYDIS |
| Ukubwa | 7.0 |
| Maombi | MP4 |
| Azimio | 1024×600 |
| Muundo | LCM |
| Mwangaza | 400 |
| CR | 800:1 |
| Rangi | 16.7M |
| Mwangaza nyuma | WLED |
| Kiolesura | LVDS |
| chapa ya paneli | HYDIS |
| mfano wa paneli | HV070WS1-1E1 |
| aina ya paneli | a-Si TFT-LCD , LCM |
| saizi ya paneli | 7.0 inch |
| azimio | 1024(RGB)×600 , WSVGA |
| hali ya kuonyesha | HFFS, Normally Black, Transmissive |
| eneo la kazi | 153.6×90 mm |
| muhtasari | 163.6×102.9×2.67 mm |
| uso | |
| mwangaza | 400 cd/m² (Typ.) |
| uwiano wa utofautishaji | 800:1 (Typ.) |
| kuonyesha rangi | 16.7M (6-bit + Hi-FRC) |
| wakati wa majibu | 50 (Typ.)(Tr+Td) |
| angle ya kutazama | 85/85/85/85 (Typ.)(CR≥10)(L/R/U/D) |
| masafa | 60Hz |
| aina ya taa | 5S4PWLEDWithout Driver |
| kiolesura cha ishara | LVDS (1 ch, 8-bit) + SPI, 30 pins |
| voltage ya pembejeo | 3.3V (Typ.) |
| maombi | MP4 |
