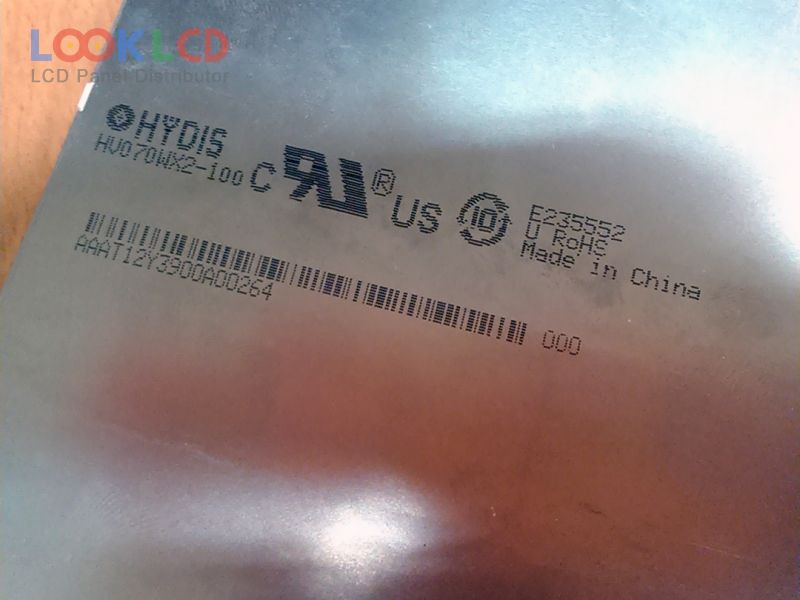

| Nambari ya Sehemu | HV070WX2-100 |
| Chapa | HYDIS |
| Ukubwa | 7.0 |
| Maombi | PAD |
| Azimio | 800×1280 |
| Muundo | LCM |
| Mwangaza | 450 |
| CR | 700:1 |
| Rangi | 262K |
| Mwangaza nyuma | WLED |
| Kiolesura | LVDS |
| chapa ya paneli | HYDIS |
| mfano wa paneli | HV070WX2-100 |
| aina ya paneli | a-Si TFT-LCD , LCM |
| saizi ya paneli | 7.0 inch |
| azimio | 800(RGB)×1280 , WXGA |
| hali ya kuonyesha | HFFS, Normally Black, Transmissive |
| eneo la kazi | 94.2×150.72 mm |
| muhtasari | 104.32×161.67×3.75 mm |
| uso | |
| mwangaza | 450 cd/m² (Typ.) |
| uwiano wa utofautishaji | 700:1 (Typ.) |
| kuonyesha rangi | 262K (6-bit), CIE193150% |
| wakati wa majibu | 30 (Typ.)(Tr+Td) |
| angle ya kutazama | 85/85/85/85 (Typ.)(CR≥10)(L/R/U/D) |
| masafa | 60Hz |
| aina ya taa | 5S5PWLEDEmbedded (LED Driver) |
| kiolesura cha ishara | LVDS (1 ch, 6-bit), 31 pins |
| voltage ya pembejeo | 3.3V (Typ.) |
| maombi | PAD |
