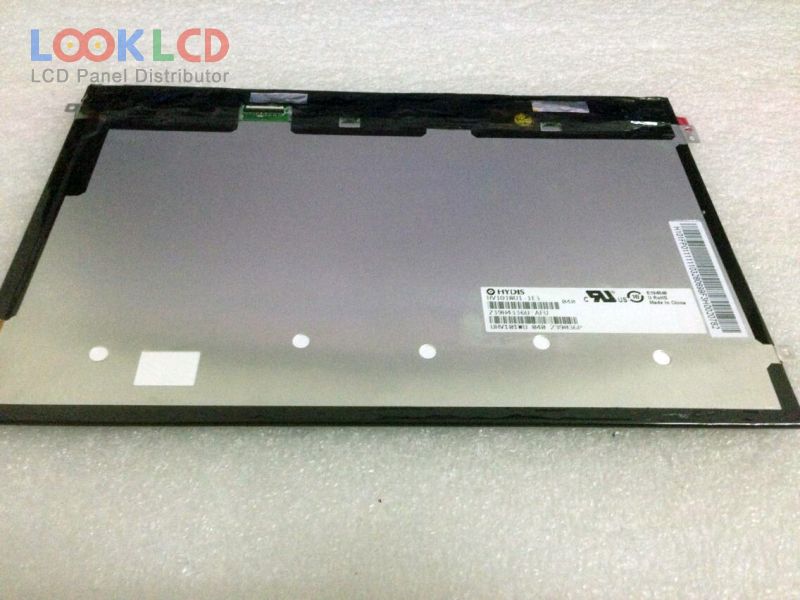

| Nambari ya Sehemu | HV101WU1-1E3 |
| Chapa | HYDIS |
| Ukubwa | 10.1 |
| Maombi | PAD |
| Azimio | 1920×1200 |
| Muundo | LCM |
| Mwangaza | 700 |
| CR | 750:1 |
| Rangi | 16.7M |
| Mwangaza nyuma | WLED |
| Kiolesura | LVDS/MIPI |
| chapa ya paneli | HYDIS |
| mfano wa paneli | HV101WU1-1E3 1 Compatible model |
| aina ya paneli | a-Si TFT-LCD , LCM |
| saizi ya paneli | 10.1 inch |
| azimio | 1920(RGB)×1200 , WUXGA |
| hali ya kuonyesha | AFFS, Normally Black, Transmissive |
| eneo la kazi | 216.576×135.36 mm |
| muhtasari | 229×153×4.8 mm |
| uso | |
| mwangaza | 700 cd/m² (Typ.) |
| uwiano wa utofautishaji | 750:1 (Typ.) |
| kuonyesha rangi | 16.7M (8-bit) |
| wakati wa majibu | 30 (Typ.)(Tr+Td) |
| angle ya kutazama | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| masafa | 60Hz |
| aina ya taa | WLEDEmbedded (LED Driver) |
| kiolesura cha ishara | LVDS/MIPI, 45 pins |
| voltage ya pembejeo | 3.3V (Typ.) |
| maombi | PAD |
| B101AW03 V0 | AUO | 10.1 | 1024×600 |
| HSD101PFW4-A00 | HannStar | 10.1 | 1024×600 |
| HV101WU1-1E3 | HYDIS | 10.1 | 1920×1200 |
| LP101WH1-TLA3 | LG Display | 10.1 | 1366×768 |
| LP101WS1-TLB3 | LG Display | 10.1 | 1024×576 |
| LTN101AT03-801 | Samsung | 10.1 | 1366×768 |
| M101NWWB R6 | IVO | 10.1 | 1280×800 |
| N101L6-L02 | Innolux | 10.1 | 1024×600 |
| N101L6-L0B | Innolux | 10.1 | 1024×600 |
| P101KDA-AP1 | Innolux | 10.1 | 1200×1920 |
| A070PAN01.0 | AUO | 7.0 | 900×1440 |
| B101EAN01.5 | AUO | 10.1 | 1280×800 |
| BP080WX1-100 | BOE | 8.0 | 1280×800 |
| HV121WX5-114 | HYDIS | 12.1 | 1280×800 |
| HV121WX6-112 | HYDIS | 12.1 | 1280×800 |
| LP101WH4-SLP2 | LG Display | 10.1 | 1366×768 |
| LTL101AL06-002 | Samsung | 10.1 | 1280×800 |
| LTN097XL01-A02 | Samsung | 9.7 | 1024×768 |
| LTN101AL01-F01 | Samsung | 10.1 | 1280×800 |
| VVX07F015M00 | Panasonic | 7.0 | 1200×1920 |
