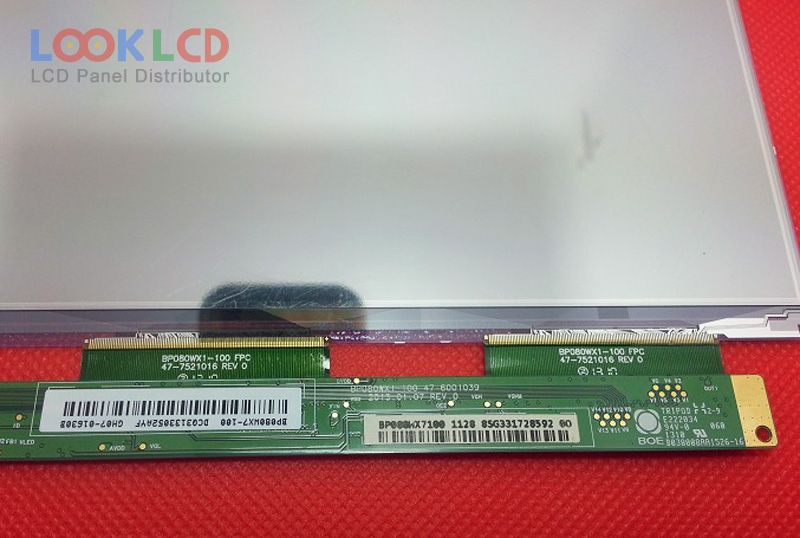

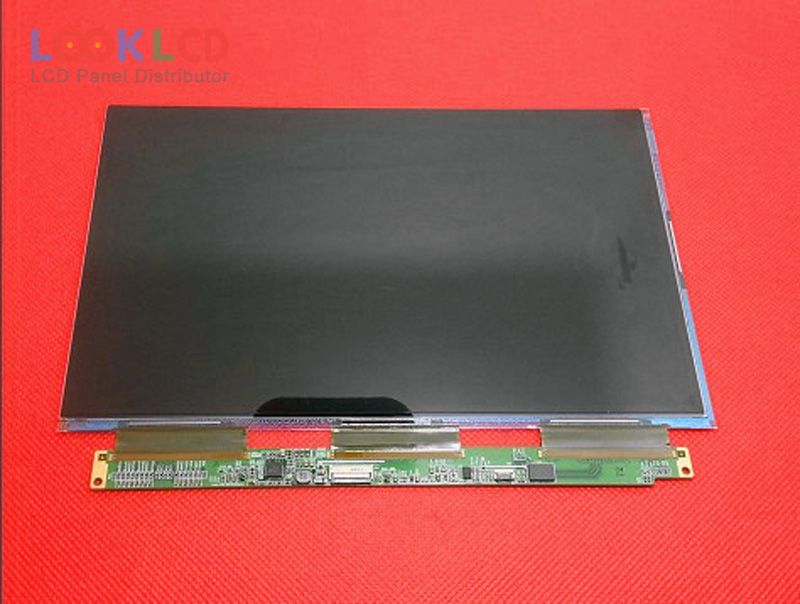

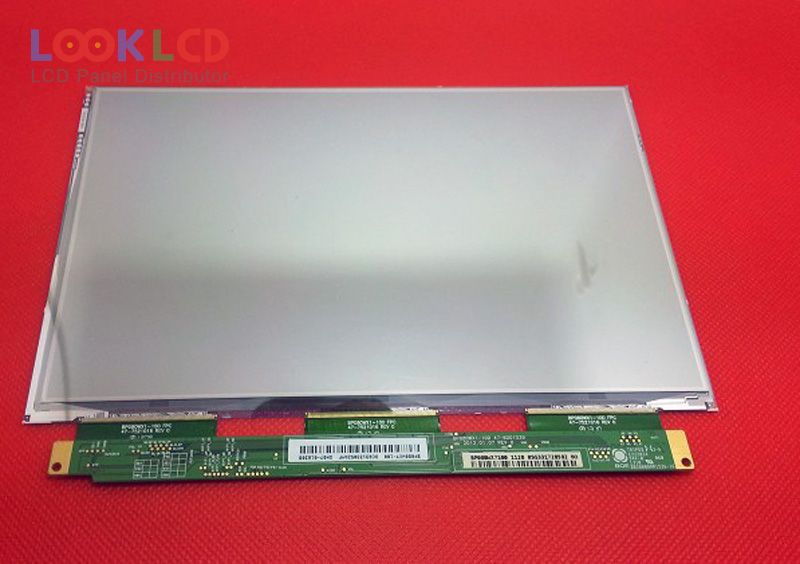

| Nambari ya Sehemu | BP080WX1-100 |
| Chapa | BOE |
| Ukubwa | 8.0 |
| Maombi | PAD |
| Azimio | 1280×800 |
| Muundo | LCM |
| Mwangaza | |
| CR | 900:1 |
| Rangi | 16.7M |
| Mwangaza nyuma | WLED |
| Kiolesura | MIPI |
| chapa ya paneli | BOE |
| mfano wa paneli | BP080WX1-100 |
| aina ya paneli | a-Si TFT-LCD , LCM |
| saizi ya paneli | 8.0 inch |
| azimio | 1280(RGB)×800 , WXGA |
| hali ya kuonyesha | HFFS, Normally Black, Transmissive |
| eneo la kazi | 172.224×107.64 mm |
| uso | Hard coating (3H) |
| mwangaza | |
| uwiano wa utofautishaji | 900:1 (Typ.) |
| kuonyesha rangi | 16.7M (6-bit + Hi-FRC) |
| wakati wa majibu | 24 (Typ.)(Tr+Td) |
| angle ya kutazama | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| aina ya taa | WLED |
| kiolesura cha ishara | MIPI (4 data lanes) |
| maombi | PAD |
| A080SN01 V0 | AUO | 8.0 | 800×600 |
| A080SN03 V3 | AUO | 8.0 | 800×600 |
| AT080TN52 | Innolux | 8.0 | 800×600 |
| B080EAN01.1 | AUO | 8.0 | 800×1280 |
| BP080WX1-100 | BOE | 8.0 | 1280×800 |
| BP080WX7-100 | BOE | 8.0 | 1280×800 |
| CLAA080UA01 | CPT | 8.0 | 1600×768 |
| L5F30614T23 | SANYO | 8.0 | 800×480 |
| N080JCE-G41 | Innolux | 8.0 | 1200×1920 |
| TV080WXM-NL0 | BOE | 8.0 | 800×1280 |
| B080UAN01.4 | AUO | 8.0 | 1200×1920 |
| B116HAT03.1 | AUO | 11.6 | 1920×1080 |
| BP101WX1-206 | BOE | 10.1 | 1280×800 |
| F101NWN7-0 | IVO | 10.1 | 1920×1200 |
| HE070IA-04M | Innolux | 7.0 | 800×1280 |
| HSD101PWW1-A00 Rev.4 | HannStar | 10.1 | 1280×800 |
| HX121WX1-103 | HYDIS | 12.1 | 1280×800 |
| LP094WX1-SLA2 | LG Display | 9.4 | 1280×800 |
| N101ICG-L11 | Innolux | 10.1 | 1280×800 |
| TM080TDHG01 | Tianma | 8.0 | 1024×768 |
