LM170E03-TLJ6

LM170E03-TLJ6
LM170E03-TLJ6
LM170E03-TLJ6
LM170E03-TLJ6 thumb LM170E03-TLJ6 thumb LM170E03-TLJ6 thumb
Chapa
LG Display
Ukubwa
17.0
Maombi
DMPC
Azimio
1280×1024
Muundo
LCM
Mwangaza
250
CR
1000:1
Rangi
16.7M
Mwangaza nyuma
CCFL
Kiolesura
LVDS

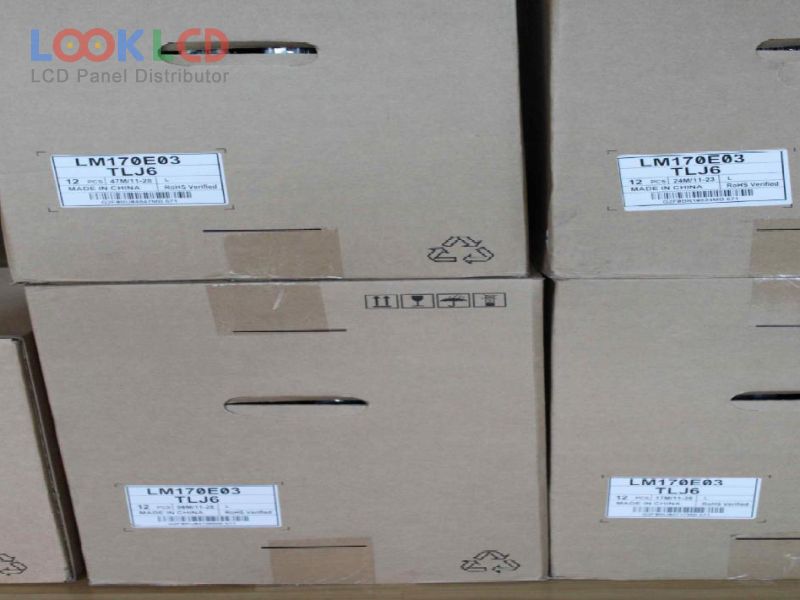

In Stock
16309
Vipimo

Nambari ya Sehemu LM170E03-TLJ6
ChapaLG Display
Ukubwa17.0
MaombiDMPC
Azimio1280×1024
MuundoLCM
Mwangaza250
CR1000:1
Rangi16.7M
Mwangaza nyumaCCFL
KiolesuraLVDS
chapa ya paneliLG Display
mfano wa paneliLM170E03-TLJ6
aina ya paneli a-Si TFT-LCD , LCM
saizi ya paneli17.0 inch
azimio1280(RGB)×1024 , SXGA
hali ya kuonyeshaTN, Normally White, Transmissive
eneo la kazi337.92×270.336 mm
muhtasari358.5×296.5 mm
usoAntiglare, Hard coating (3H)
mwangaza250 cd/m² (Typ.)
uwiano wa utofautishaji1000:1 (Typ.)
kuonyesha rangi16.7M (6-bit + Hi-FRC), CIE193173%
wakati wa majibu1.2/3.8 (Typ.)(Tr/Td)
angle ya kutazama85/85/75/85 (Typ.)(CR≥10)(L/R/U/D)
masafa60Hz

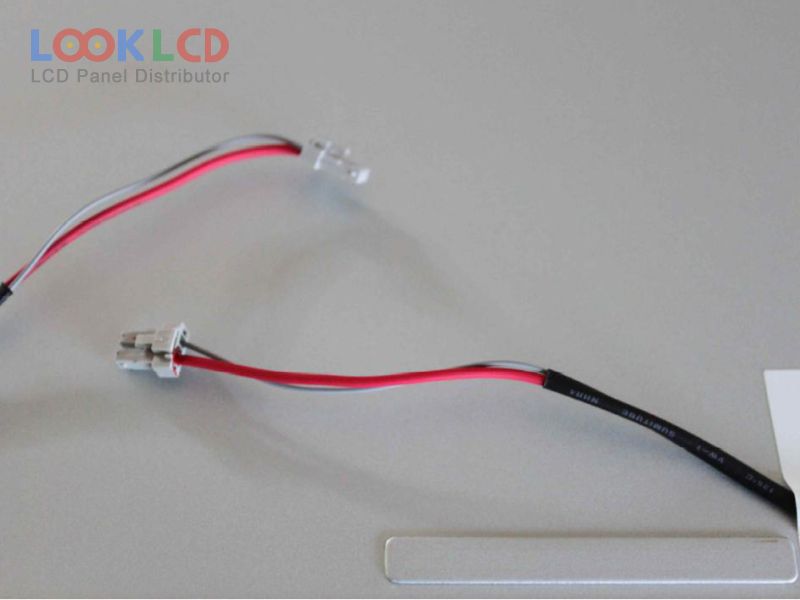

aina ya taa2 pcsCCFLWithout Driver
kiolesura cha isharaLVDS (2 ch, 8-bit), 30 pins
voltage ya pembejeo5.0V (Typ.)
maombiDMPC
Mfano wa Familia
LM170E01-A4 LG Display 17.0 1280×1024
LM170E01-A6 LG Display 17.0 1280×1024
LM170E01-TLB3 LG Display 17.0 1280×1024
LM170E01-TLBF LG Display 17.0 1280×1024
LM170E03-TLG1 LG Display 17.0 1280×1024
LM170E03-TLH1 LG Display 17.0 1280×1024
LM170E03-TLJ1 LG Display 17.0 1280×1024
LM170E03-TLJ2 LG Display 17.0 1280×1024
LM170E03-TLL1 LG Display 17.0 1280×1024
LM170E03-TLL2 LG Display 17.0 1280×1024
