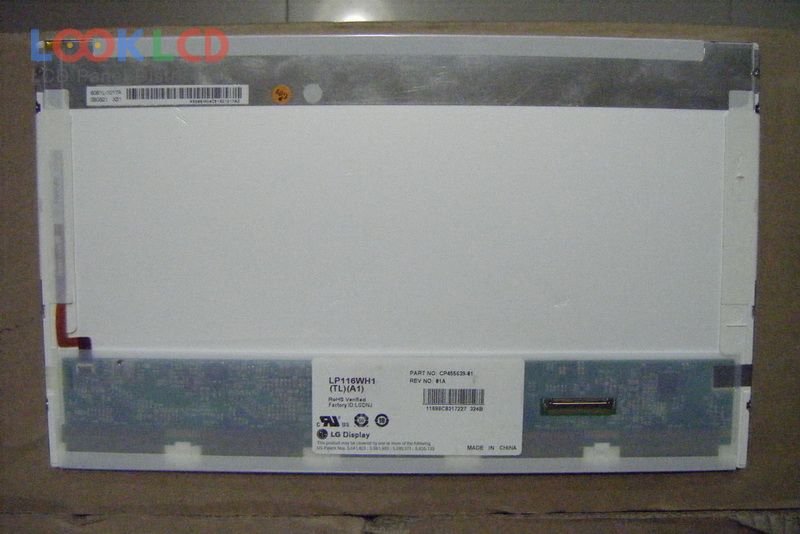

| Nambari ya Sehemu | LP116WH1-TLA1 |
| Chapa | LG Display |
| Ukubwa | 11.6 |
| Maombi | NOPC |
| Azimio | 1366×768 |
| Muundo | LCM |
| Mwangaza | 200 |
| CR | 300:1 |
| Rangi | 262K |
| Mwangaza nyuma | WLED |
| Kiolesura | LVDS |
| chapa ya paneli | LG Display |
| mfano wa paneli | LP116WH1-TLA1 7 Compatible model |
| aina ya paneli | a-Si TFT-LCD , LCM |
| saizi ya paneli | 11.6 inch |
| azimio | 1366(RGB)×768 , WXGA |
| hali ya kuonyesha | TN, Normally White, Transmissive |
| eneo la kazi | 256.125×144 mm |
| muhtasari | 268×161.5×5.2 mm |
| mtindo wa sura | Wedge (PCBA Bent, Depth ≥5.2mm) |
| uso | Glare (Haze 0%) |
| mwangaza | 200 cd/m² (Typ.) |
| uwiano wa utofautishaji | 300:1 (Min.) |
| kuonyesha rangi | 262K (6-bit) |
| wakati wa majibu | 9 (Typ.)(Tr+Td) |
| angle ya kutazama | 30/30/10/20 (Min.)(CR≥10)(L/R/U/D) |
| masafa | 60Hz |
| aina ya taa | WLEDEmbedded (LED Driver) |
| kiolesura cha ishara | LVDS (1 ch, 6-bit), 40 pins |
| voltage ya pembejeo | 3.3V (Typ.) |
| maombi | NOPC |
