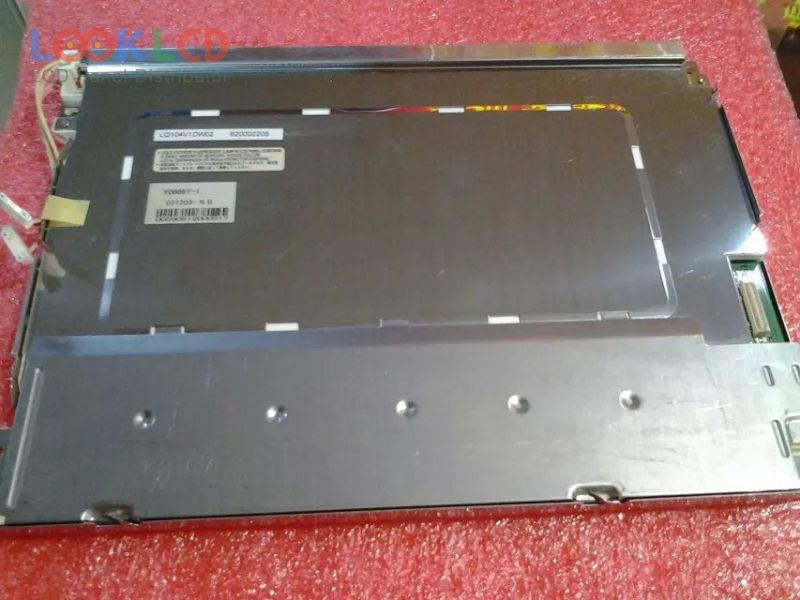

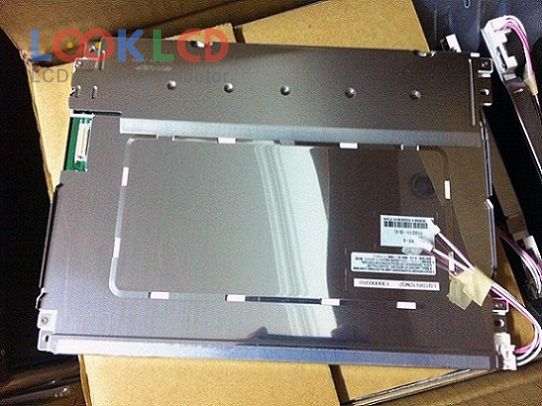

| Nambari ya Sehemu | LQ104V1DW02 |
| Chapa | SHARP |
| Ukubwa | 10.4 |
| Maombi | IA |
| Azimio | 640×480 |
| Muundo | LCM |
| Mwangaza | 380 |
| CR | 450:1 |
| Rangi | 262K |
| Mwangaza nyuma | CCFL |
| Kiolesura | TTL |
| chapa ya paneli | SHARP |
| mfano wa paneli | LQ104V1DW02 |
| aina ya paneli | a-Si TFT-LCD , LCM |
| saizi ya paneli | 10.4 inch |
| azimio | 640(RGB)×480 , VGA |
| hali ya kuonyesha | ASV, Normally Black, Transmissive |
| eneo la kazi | 211.2×158.4 mm |
| muhtasari | 246.5×179.4×15.5 mm |
| uso | Antiglare, Hard coating (3H), Antireflection |
| mwangaza | 380 cd/m² (Typ.) |
| uwiano wa utofautishaji | 450:1 (Typ.) |
| kuonyesha rangi | 262K (6-bit) |
| wakati wa majibu | 12/13 (Typ.)(Tr/Td) |
| angle ya kutazama | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| aina ya taa | 2 pcsCCFLWithout Driver |
| kiolesura cha ishara | Parallel RGB (1 ch, 6-bit), 31 pins |
| voltage ya pembejeo | 3.3/5.0V (Typ.)(VCC) |
| maombi | IA |
| LQ104S1DG21 | SHARP | 10.4 | 800×600 |
| LQ104S1DG34 | SHARP | 10.4 | 800×600 |
| LQ104S1DG61 | SHARP | 10.4 | 800×600 |
| LQ104S1LG31 | SHARP | 10.4 | 800×600 |
| LQ104S1LG61 | SHARP | 10.4 | 800×600 |
| LQ104S1LG81 | SHARP | 10.4 | 800×600 |
| LQ104V1DG11 | SHARP | 10.4 | 640×480 |
| LQ104V1DG51 | SHARP | 10.4 | 640×480 |
| LQ104V1DG59 | SHARP | 10.4 | 640×480 |
| LQ104V1DG83 | SHARP | 10.4 | 640×480 |
| A150XN01 V0 | AUO | 15.0 | 1024×768 |
| DLC0570CDG-1 | Other | 5.7 | 320×240 |
| G057QN01 V0 | AUO | 5.7 | 320×240 |
| G190SF01 V0 | AUO | 19.0 | 1680×342 |
| KCS072VG1MB-G42 | Kyocera | 7.2 | 640×480 |
| LM8V311 | SHARP | 7.7 | 640×480 |
| LS037V3DX01 | SHARP | 3.7 | 640×480 |
| NL6448BC20-35D | NLT | 6.5 | 640×480 |
| NL8060BC21-11C | NLT | 8.4 | 800×600 |
| TM084SBHG04 | Tianma | 8.4 | 800×600 |
