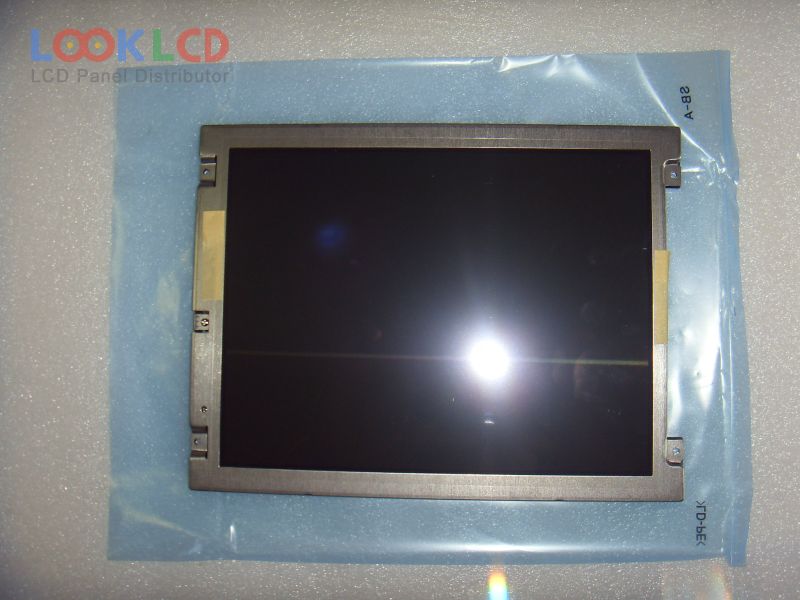

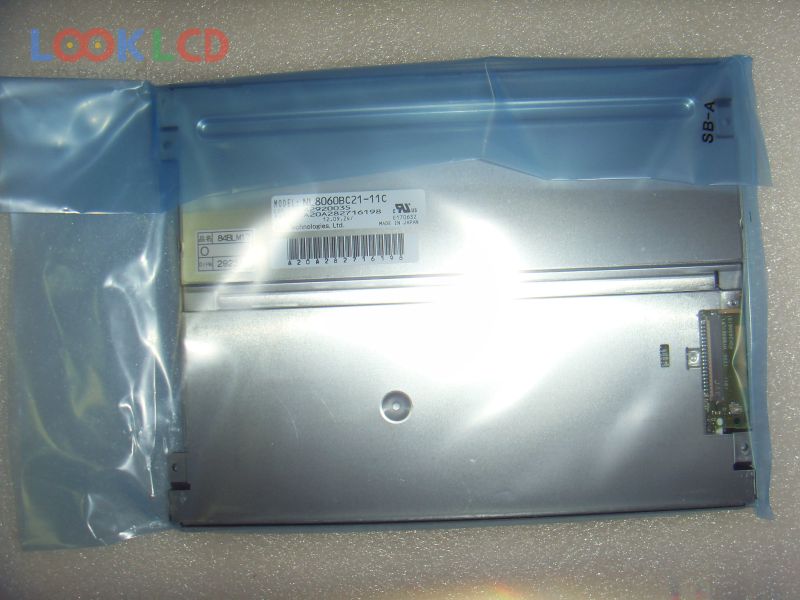

| Nambari ya Sehemu | NL8060BC21-11C |
| Chapa | NLT |
| Ukubwa | 8.4 |
| Maombi | IA |
| Azimio | 800×600 |
| Muundo | LCM |
| Mwangaza | 800 |
| CR | 800:1 |
| Rangi | 262K/16.7M |
| Mwangaza nyuma | WLED |
| Kiolesura | LVDS |
| chapa ya paneli | NEC |
| mfano wa paneli | NL8060BC21-11C |
| aina ya paneli | a-Si TFT-LCD , LCM |
| saizi ya paneli | 8.4 inch |
| azimio | 800(RGB)×600 , SVGA |
| hali ya kuonyesha | TN, Normally White, Transmissive |
| eneo la kazi | 170.4×127.8 mm |
| muhtasari | 200×152×8.7 mm |
| uso | Clear, Hard coating (2H), Antireflection |
| mwangaza | 800 cd/m² (Typ.) |
| uwiano wa utofautishaji | 800:1 (Typ.) |
| kuonyesha rangi | 262K/16.7M (6-bit / 6-bit + Hi-FRC), CIE193140% |
| wakati wa majibu | 3/15 (Typ.)(Tr/Td) |
| angle ya kutazama | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| masafa | 60Hz |
| aina ya taa | 4 stringsWLEDWithout Driver |
| kiolesura cha ishara | LVDS (1 ch, 6/8-bit), 20 pins |
| voltage ya pembejeo | 3.3V (Typ.) |
| maombi | IA |
| NL8060BC21-02 | NLT | 8.4 | 800×600 |
| NL8060BC21-11F | NLT | 8.4 | 800×600 |
| NL8060BC26-13 | NLT | 10.4 | 800×600 |
| NL8060BC26-15 | NLT | 10.4 | 800×600 |
| NL8060BC26-27 | NLT | 10.4 | 800×600 |
| NL8060BC26-28 | NLT | 10.4 | 800×600 |
| NL8060BC31-13A | NLT | 12.1 | 800×600 |
| NL8060BC31-17 | NLT | 12.1 | 800×600 |
| NL8060BC31-27 | NLT | 12.1 | 800×600 |
| NL8060BC31-28D | NLT | 12.1 | 800×600 |
| AM-1280800N1TZQW-T06H | AMPIRE | 10.1 | 1280×800 |
| EL160.80.50 ET CC | Lumineq | 3.5 | 160×80 |
| G150XTN06.2 | AUO | 15.0 | 1024×768 |
| HSD121MS11-A | HannStar | 12.1 | 800×600 |
| NL6448AC33-24 | NLT | 10.4 | 640×480 |
| PD050OX1 | E Ink | 5.0 | 480×480 |
| PD064VT8 | E Ink | 6.4 | 640×480 |
| PD104SL7 | E Ink | 10.4 | 800×600 |
| TM057QDHG04 | Tianma | 5.7 | 640×480 |
| UG-5664ALBDF01 | WiseChip | 2.8 | 256×64 |
