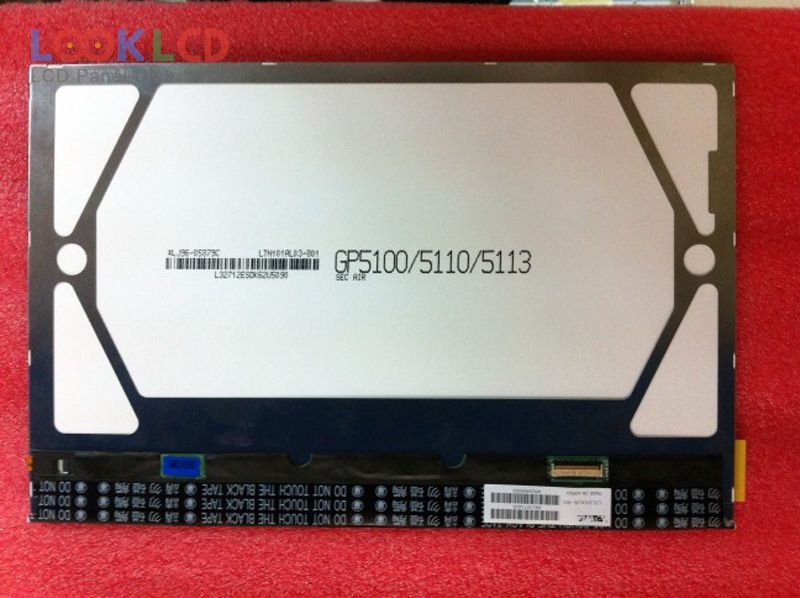

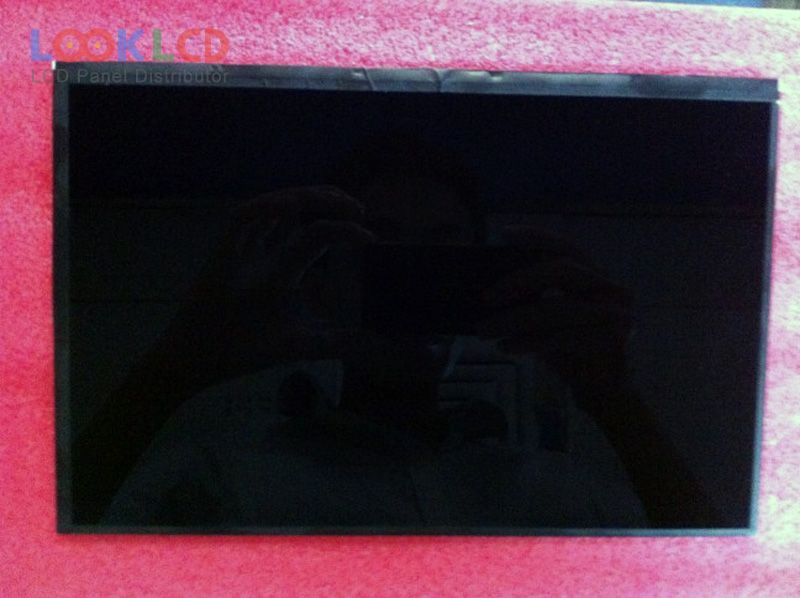

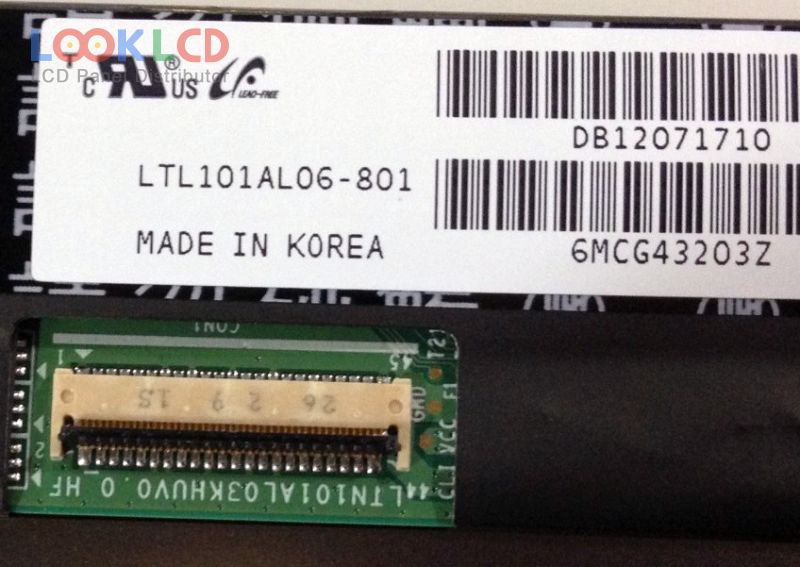

| Nambari ya Sehemu | LTL101AL06-801 |
| Chapa | Samsung |
| Ukubwa | 10.1 |
| Maombi | PAD |
| Azimio | 1280×800 |
| Muundo | LCM |
| Mwangaza | 400 |
| CR | 900:1 |
| Rangi | 16.2M |
| Mwangaza nyuma | WLED |
| Kiolesura | LVDS |
| chapa ya paneli | SAMSUNG |
| mfano wa paneli | LTL101AL06-801 5 Compatible model |
| aina ya paneli | a-Si TFT-LCD , LCM |
| saizi ya paneli | 10.1 inch |
| azimio | 1280(RGB)×800 , WXGA |
| hali ya kuonyesha | PLS, Normally Black, Transmissive |
| eneo la kazi | 216.96×135.6 mm |
| muhtasari | 228.21×148.86×4.59 mm |
| uso | Hard coating (3H) |
| mwangaza | 400 cd/m² (Typ.) |
| uwiano wa utofautishaji | 900:1 (Typ.) |
| kuonyesha rangi | 16.2M (6-bit + FRC), CIE193150% |
| wakati wa majibu | 30 (Typ.)(Tr+Td) |
| angle ya kutazama | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| masafa | 60Hz |
| aina ya taa | 4 stringsWLEDWithout Driver |
| kiolesura cha ishara | LVDS (1 ch, 8-bit), 45 pins |
| voltage ya pembejeo | 3.3V (Typ.) |
| maombi | PAD |
