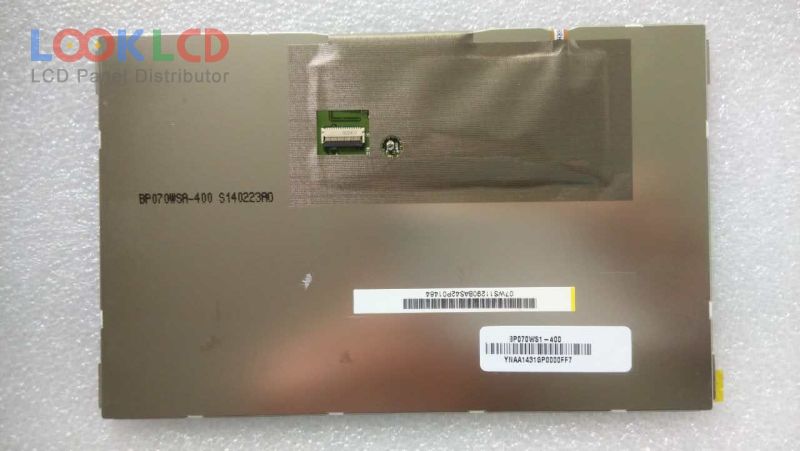

| Nambari ya Sehemu | BP070WS1-400 |
| Chapa | BOE |
| Ukubwa | 7.0 |
| Maombi | PAD |
| Azimio | 1024×600 |
| Muundo | LCM |
| Mwangaza | 350 |
| CR | 900:1 |
| Rangi | 16.7M |
| Mwangaza nyuma | WLED |
| Kiolesura | MIPI |
| chapa ya paneli | BOE |
| mfano wa paneli | BP070WS1-400 |
| aina ya paneli | a-Si TFT-LCD , LCM |
| saizi ya paneli | 7.0 inch |
| azimio | 1024(RGB)×600 , WSVGA |
| hali ya kuonyesha | ADS, Normally Black, Transmissive |
| eneo la kazi | 153.6×90 mm |
| muhtasari | 162.8×102.9×4.2 mm |
| uso | Glare (Haze 0%), Hard coating (3H) |
| mwangaza | 350 cd/m² (Typ.) |
| uwiano wa utofautishaji | 900:1 (Typ.) |
| kuonyesha rangi | 16.7M (6-bit + Hi-FRC), CIE193152% |
| wakati wa majibu | 30 (Typ.)(Tr+Td) |
| angle ya kutazama | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| masafa | 60Hz |
| aina ya taa | 5S4PWLEDEmbedded (LED Driver) |
| kiolesura cha ishara | MIPI (4 data lanes), 31 pins |
| voltage ya pembejeo | 3.7V (Typ.) |
| maombi | PAD |
