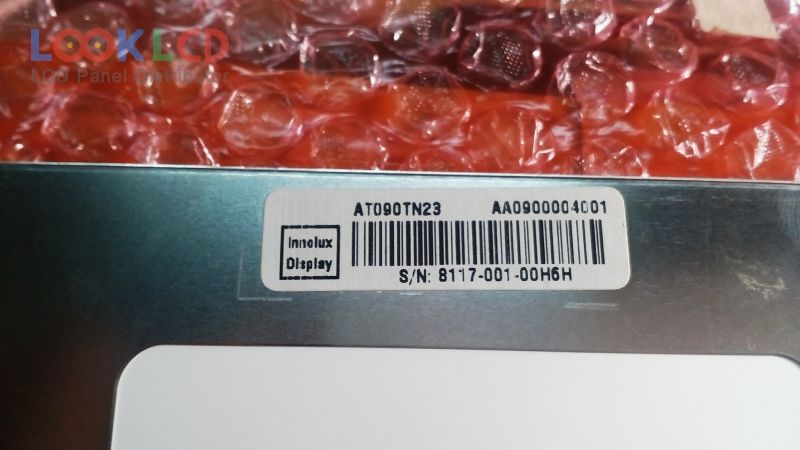

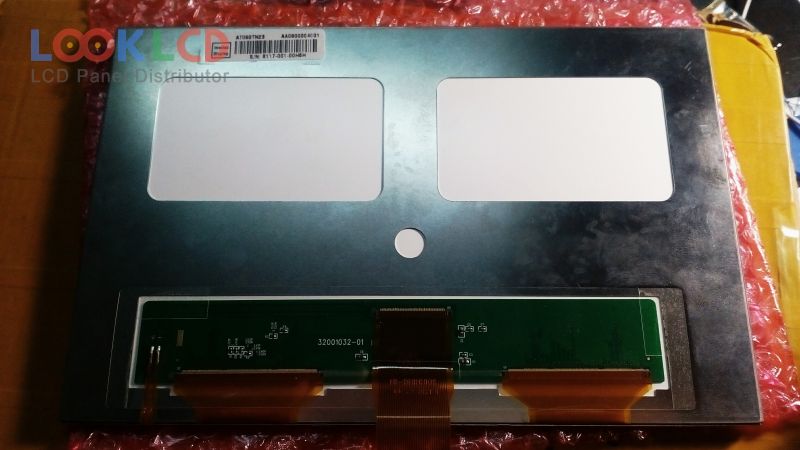

| Nambari ya Sehemu | AT090TN23 |
| Chapa | Innolux |
| Ukubwa | 9.0 |
| Maombi | PAD |
| Azimio | 1280×800 |
| Muundo | LCM |
| Mwangaza | 340 |
| CR | 700:1 |
| Rangi | 262K/16.7M |
| Mwangaza nyuma | WLED |
| Kiolesura | LVDS |
| chapa ya paneli | CHIMEI INNOLUX |
| mfano wa paneli | AT090TN23 |
| aina ya paneli | a-Si TFT-LCD , LCM |
| saizi ya paneli | 9.0 inch |
| azimio | 1280(RGB)×800 , WXGA |
| hali ya kuonyesha | TN, Normally White, Transmissive |
| eneo la kazi | 193.92×121.2 mm |
| muhtasari | 206.76×135.06 mm |
| uso | |
| mwangaza | 340 cd/m² (Typ.) |
| uwiano wa utofautishaji | 700:1 (Typ.) |
| kuonyesha rangi | 262K/16.7M (6-bit / 6-bit + Hi-FRC), CIE193170% |
| wakati wa majibu | 10/15 (Typ.)(Tr/Td) |
| angle ya kutazama | 70/70/70/50 (Typ.)(CR≥10)(L/R/U/D) |
| masafa | 60Hz |
| aina ya taa | WLEDWithout Driver |
| kiolesura cha ishara | LVDS (1 ch, 6/8-bit), 40 pins |
| voltage ya pembejeo | 3.3/11.0/20.0/-6.8V (Typ.)(DVDD/AVDD/VGH/VHL) |
| maombi | PAD |
