| Nambari ya Sehemu | LTM170E8-L03 |
| Chapa | Samsung |
| Ukubwa | 17.0 |
| Maombi | DMPC |
| Azimio | 1280×1024 |
| Muundo | LCM |
| Mwangaza | 280 |
| CR | 1500:1 |
| Rangi | 16.7M |
| Mwangaza nyuma | CCFL |
| Kiolesura | LVDS |
| chapa ya paneli | SAMSUNG |

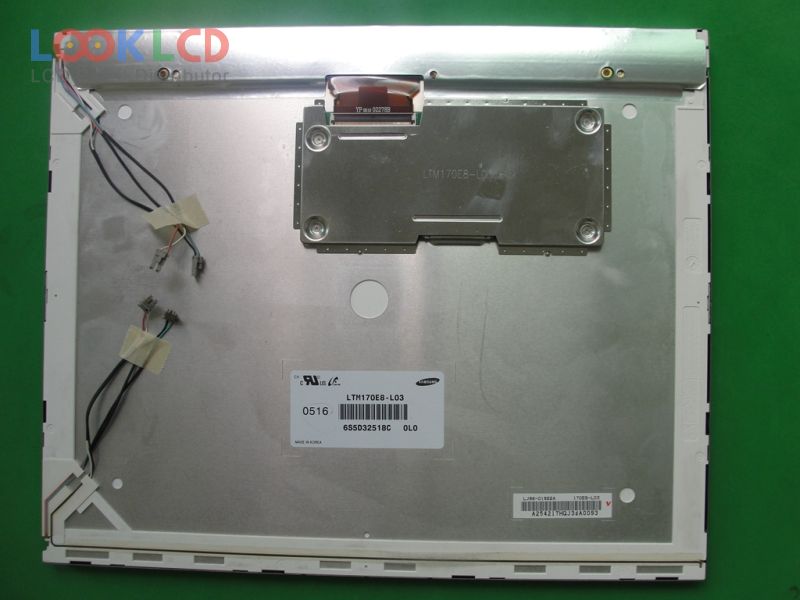

| mfano wa paneli | LTM170E8-L03 |
| aina ya paneli | a-Si TFT-LCD , LCM |
| saizi ya paneli | 17.0 inch |
| azimio | 1280(RGB)×1024 , SXGA |
| hali ya kuonyesha | PVA, Normally Black, Transmissive |
| eneo la kazi | 337.92×270.336 mm |
| muhtasari | 354.9×290.3×16.5 mm |
| uso | Antiglare (Haze 44%), Hard coating (3H) |
| mwangaza | 280 cd/m² (Typ.) |
| uwiano wa utofautishaji | 1500:1 (Typ.) |
| kuonyesha rangi | 16.7M (8-bit), CIE193172% |
| wakati wa majibu | 14 (Typ.)(Tr+Td); 8 (Typ.)(G to G) |
| angle ya kutazama | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| masafa | 60Hz |
| aina ya taa | 4 pcsCCFLWithout Driver |
| kiolesura cha ishara | LVDS (2 ch, 8-bit), 30 pins |
| voltage ya pembejeo | 5.0V (Typ.) |
| maombi | DMPC |
