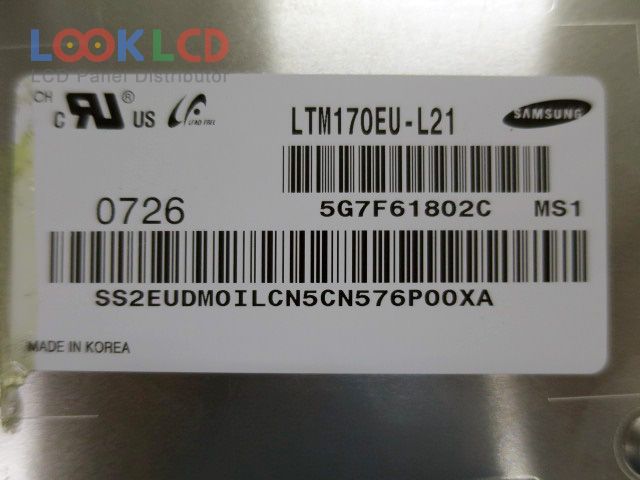

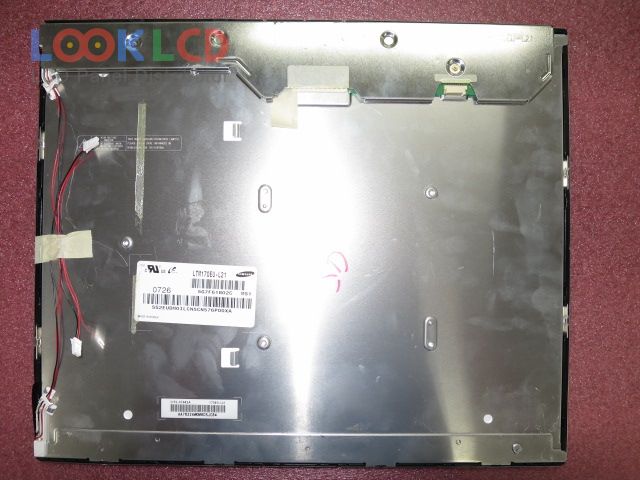

| Nambari ya Sehemu | LTM170EU-L21 |
| Chapa | Samsung |
| Ukubwa | 17.0 |
| Maombi | DMPC |
| Azimio | 1280×1024 |
| Muundo | LCM |
| Mwangaza | 300 |
| CR | 700:1 |
| Rangi | 16.2M |
| Mwangaza nyuma | CCFL |
| Kiolesura | LVDS |
| chapa ya paneli | SAMSUNG |
| mfano wa paneli | LTM170EU-L21 1 Compatible model |
| aina ya paneli | a-Si TFT-LCD , LCM |
| saizi ya paneli | 17.0 inch |
| azimio | 1280(RGB)×1024 , SXGA |
| hali ya kuonyesha | TN, Normally White, Transmissive |
| eneo la kazi | 337.92×270.336 mm |
| muhtasari | 358.5×296.5×17.5 mm |
| uso | Antiglare (Haze 25%), Hard coating (3H) |
| mwangaza | 300 cd/m² (Typ.) |
| uwiano wa utofautishaji | 700:1 (Typ.) |
| kuonyesha rangi | 16.2M (6-bit + FRC), CIE193172% |
| wakati wa majibu | 2/6 (Typ.)(Tr/Td) |
| angle ya kutazama | 70/70/75/60 (Typ.)(CR≥10)(L/R/U/D) |
| masafa | 60Hz |
| aina ya taa | 4 pcsCCFLWithout Driver |
| kiolesura cha ishara | LVDS (2 ch, 8-bit), 30 pins |
| voltage ya pembejeo | 5.0V (Typ.) |
| maombi | DMPC |
