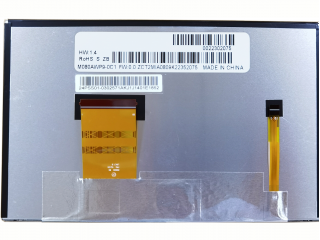

| Nambari ya Sehemu | M080AWP9 R0 |
| Chapa | IVO |
| Ukubwa | 8.0 |
| Maombi | Automotive Display |
| Azimio | 800×480 |
| Muundo | a-Si TFT-LCD, LCM |
| Mwangaza | |
| CR | 700:1 |
| Rangi | 262K |
| Mwangaza nyuma | WLED |
| Kiolesura | Parallel |
| chapa | IVO |
| mfano | M080AWP9 R0 |
| ukubwa wa diagonal | 8.0 inch |
| aina | a-Si TFT-LCD, LCM |
| muundo wa pixel | 800(RGB)×480 [WVGA] 115PPI |
| usanidi | RGB Vertical Stripe |
| eneo la kazi | 175.2(H)×105.12(V) mm |
| muhtasari dim. | 186.5(H)×117.22(V) ×6.65(D) mm |
| eneo la bezel | 177.4(H)×107.32(V) mm |
| matibabu | Antiglare |
| mwangaza | 750 cd/m² (Typ.) |
| uwiano wa utofautishaji | 700:1 (Typ.) (TM) |
| tazama mwelekeo | - |
| wakati wa majibu | 13 (Typ.)(Tr+Td) |
| angle ya kutazama | 70/70/50/70 (Typ.)(CR≥10) |
| hali ya uendeshaji | TN, Normally White, Transmissive |
| rangi ya msaada | 262K 70% NTSC |
| chanzo cha mwanga | WLED [7S3P] , 30K hours , W/O Driver |
| uzito | 195/215g (Typ./Max.) |
| iliyoundwa kwa ajili ya | Automotive Display |
| kiwango cha fremu | 60Hz |
| jopo la kugusa | Without |
| aina ya kiolesura | Parallel RGB (1 ch, 6-bit) , 60 pins FPC |
| usambazaji wa nguvu | 3.3/10.6/22/-7.0V (Typ.)(VCC/VDDA/VGH/VGL) |
| mazingira | Operating Temperature: -30 ~ 85 °C ; Storage Temperature: -40 ~ 95 °C |
