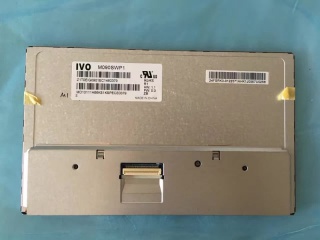

| Nambari ya Sehemu | M090SWP1 R1 |
| Chapa | IVO |
| Ukubwa | 9.0 |
| Maombi | Industrial |
| Azimio | 800×480 |
| Muundo | a-Si TFT-LCD , LCM |
| Mwangaza | - |
| CR | 500:1 |
| Rangi | 16.7M |
| Mwangaza nyuma | WLED |
| Kiolesura | |
| chapa ya paneli | IVO |
| saizi ya paneli | 9.0" |
| azimio | 800(RGB)×480, WVGA, 104PPI |
| eneo la maonyesho | 198(W)×111.696(H) mm |
| saizi ya muhtasari | 211.1(W)×128.4(H) ×7.1(D) mm |
| mwangaza | - |
| angle ya kutazama | 70/70/50/70 (Typ.)(CR≥10) |
| mwonekano bora zaidi | 6 o'clock |
| kuonyesha rangi | 16.7M 50% NTSC |
| masafa | 60Hz |
| uzito | - |
| mfano wa paneli | M090SWP1 R1 |
| aina ya paneli | a-Si TFT-LCD , LCM |
| muundo wa pixel | RGB Vertical Stripe |
| ufunguzi wa bezel | 201.0(W)×114.7(H) mm |
| uso | Antiglare, Hard coating (3H) |
| uwiano wa utofautishaji | 500:1 (Typ.) (TM) |
| hali ya kuonyesha | TN, Normally White, Transmissive |
| wakati wa majibu | 10/15 (Typ.)(Tr/Td) |
| aina ya taa | WLED , 20K hours , With LED Driver |
| skrini ya kugusa | Without |
| maombi | Industrial |
| AA090MC01 | Mitsubishi | 9.0 | 800×480 |
| AT090TN23 | Innolux | 9.0 | 1280×800 |
| C090EAN01.1 | AUO | 9.0 | 1280×720 |
| DLC0900DIG-1 | Other | 9.0 | 800×480 |
| ED090NA-01H | Innolux | 9.0 | 1280×800 |
| LTA090A220F | TOSHIBA | 9.0 | 800×480 |
| LTA090B230F | TOSHIBA | 9.0 | 536×328 |
| LTA090B400F | TOSHIBA | 9.0 | 800×480 |
| M090SWP1 R0 | IVO | 9.0 | 800×480 |
| TX23D85VM0BAA | KOE | 9.0 | 1280×768 |
