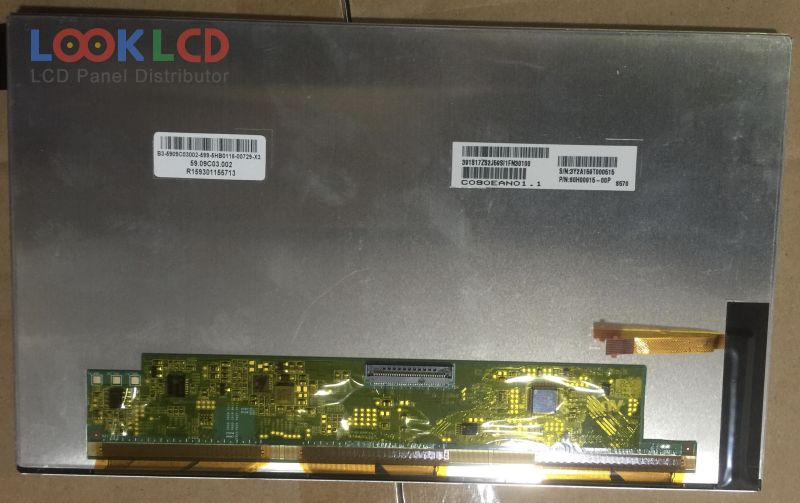

| Nambari ya Sehemu | C090EAN01.1 |
| Chapa | AUO |
| Ukubwa | 9.0 |
| Maombi | CNS |
| Azimio | 1280×720 |
| Muundo | LCM |
| Mwangaza | 680 |
| CR | 1000:1 |
| Rangi | 16.7M |
| Mwangaza nyuma | WLED |
| Kiolesura | LVDS |
| chapa ya paneli | AUO |
| mfano wa paneli | C090EAN01.1 |
| aina ya paneli | a-Si TFT-LCD , LCM |
| saizi ya paneli | 9.0 inch |
| azimio | 1280(RGB)×720 , WXGA |
| hali ya kuonyesha | AHVA, Normally Black, Transmissive |
| eneo la kazi | 198.72×111.78 mm |
| muhtasari | 210×126.8 mm |
| uso | Antiglare |
| mwangaza | 680 cd/m² (Typ.) |
| uwiano wa utofautishaji | 1000:1 (Typ.) |
| kuonyesha rangi | 16.7M (8-bit) |
| wakati wa majibu | 15/15 (Max.)(Tr/Td) |
| angle ya kutazama | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| masafa | 60Hz |
| aina ya taa | 6S3PWLEDWithout Driver |
| kiolesura cha ishara | LVDS (1 ch, 8-bit), 40 pins |
| voltage ya pembejeo | 3.3/3.3V (Typ.)(VDD/VDDA) |
| maombi | CNS |
