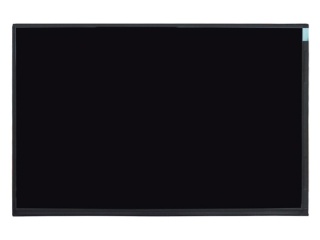

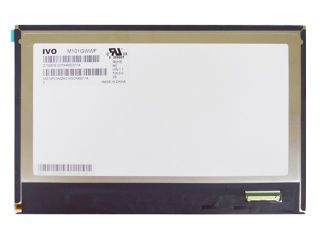

| Nambari ya Sehemu | M101GWWF R0 |
| Chapa | IVO |
| Ukubwa | 10.1 |
| Maombi | Laptop |
| Azimio | 1280×800 |
| Muundo | a-Si TFT-LCD, LCM |
| Mwangaza | |
| CR | 800:1 |
| Rangi | 16.7M |
| Mwangaza nyuma | WLED |
| Kiolesura | LVDS |
| chapa | IVO |
| mfano | M101GWWF R0 |
| ukubwa wa diagonal | 10.1 inch |
| aina | a-Si TFT-LCD, LCM |
| muundo wa pixel | 1280(RGB)×800 [WXGA] 149PPI |
| usanidi | RGB Vertical Stripe |
| eneo la kazi | 216.96(H)×135.6(V) mm |
| muhtasari dim. | 229.46(H)×149.1(V) ×4.56(D) mm |
| eneo la bezel | - |
| matibabu | Glare (Haze 0%), Hard coating (3H) |
| mwangaza | 350 cd/m² (Typ.) |
| uwiano wa utofautishaji | 800:1 (Typ.) (TM) |
| tazama mwelekeo | Symmetry |
| wakati wa majibu | 25 (Typ.)(Tr+Td) |
| angle ya kutazama | 85/85/85/85 (Typ.)(CR≥10) |
| hali ya uendeshaji | IPS, Normally Black, Transmissive |
| rangi ya msaada | 16.7M |
| chanzo cha mwanga | WLED , 25K hours , With LED Driver |
| mtindo wa fomu | Slim (PCBA Bent, T≤3.0mm) |
| iliyoundwa kwa ajili ya | Laptop |
| kiwango cha fremu | 60Hz |
| jopo la kugusa | Without |
| aina ya kiolesura | LVDS (1 ch, 8-bit) , 40 pins Connector |
| usambazaji wa nguvu | 3.3V (Typ.) |
| mazingira | Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C |
