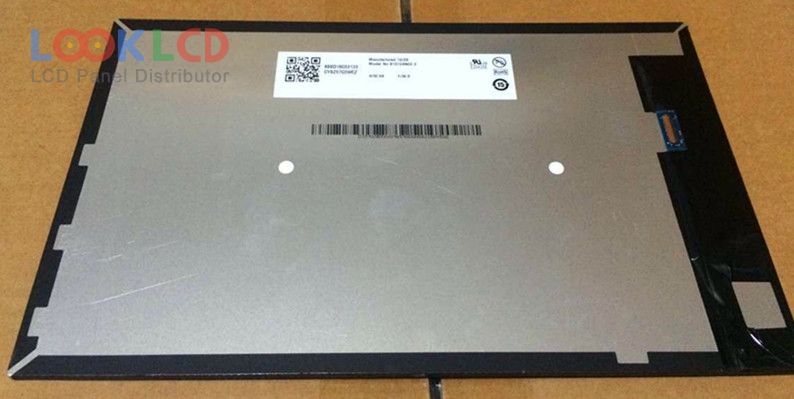

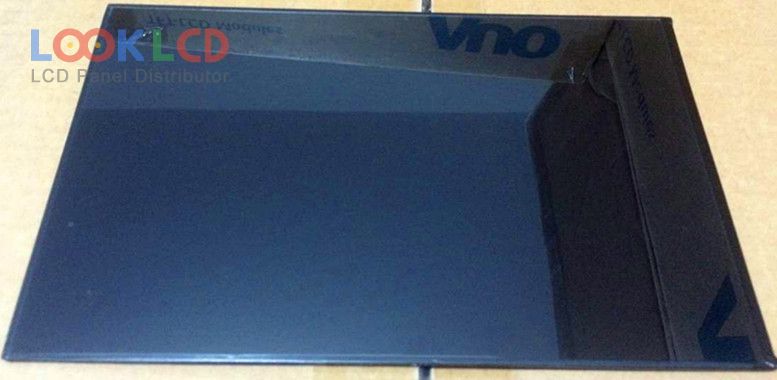

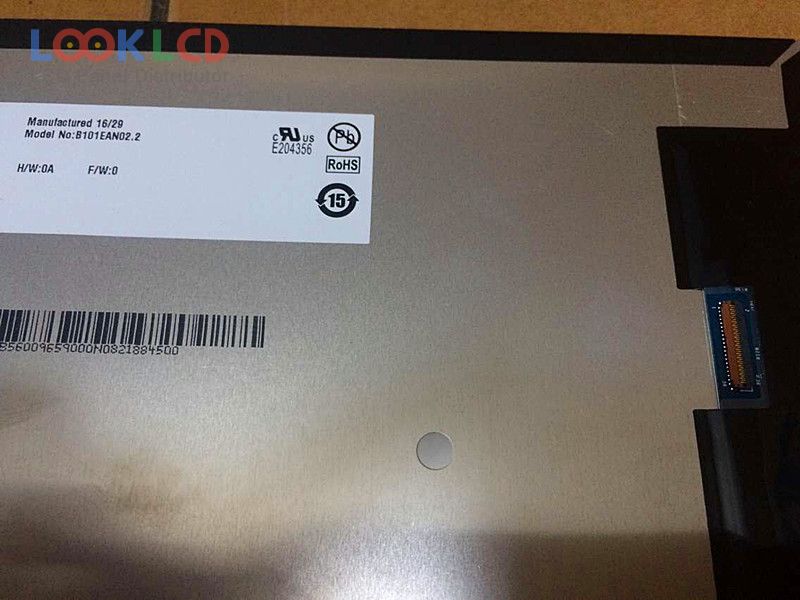

| Nambari ya Sehemu | B101EAN02.2 |
| Chapa | AUO |
| Ukubwa | 10.1 |
| Maombi | PAD |
| Azimio | 800×1280 |
| Muundo | LCM |
| Mwangaza | 350 |
| CR | 1000:1 |
| Rangi | 16.7M |
| Mwangaza nyuma | WLED |
| Kiolesura | LVDS |
| chapa ya paneli | AUO |
| mfano wa paneli | B101EAN02.2 |
| aina ya paneli | a-Si TFT-LCD , LCM |
| saizi ya paneli | 10.1 inch |
| azimio | 800(RGB)×1280 , WXGA |
| hali ya kuonyesha | AHVA, Normally Black, Transmissive |
| eneo la kazi | 135.36×216.576 mm |
| muhtasari | 142×228.5 mm |
| uso | Glare (Haze 0%), Antireflection |
| mwangaza | 350 cd/m² (Typ.) |
| uwiano wa utofautishaji | 1000:1 (Typ.) |
| kuonyesha rangi | 16.7M (8-bit), CIE193160% |
| wakati wa majibu | 30 (Typ.)(Tr+Td) |
| angle ya kutazama | 85/85/85/85 (Typ.)(CR≥10)(L/R/U/D) |
| masafa | 60Hz |
| aina ya taa | WLEDWithout Driver |
| kiolesura cha ishara | LVDS (1 ch, 8-bit), 39 pins |
| voltage ya pembejeo | 3.3V (Typ.) |
| maombi | PAD |
| B101EAN01.1 | AUO | 10.1 | 1280×800 |
| B101EAN01.2 | AUO | 10.1 | 1280×800 |
| B101EAN01.5 | AUO | 10.1 | 1280×800 |
| B101EAN01.6 | AUO | 10.1 | 1280×800 |
| B101EAN02.2 | AUO | 10.1 | 800×1280 |
| B101EVT03.1 | AUO | 10.1 | 1280×800 |
| B101EVT04.0 | AUO | 10.1 | 1280×800 |
| B101EW01 V1 | AUO | 10.1 | 1280×720 |
| B101EW05 V0 | AUO | 10.1 | 1280×800 |
| B101EW05 V1 | AUO | 10.1 | 1280×800 |
| BP070WS1-200 | BOE | 7.0 | 1024×600 |
| CLAA070WP03XG | CPT | 7.0 | 800×1280 |
| ED090NA-01D | Innolux | 9.0 | 1280×800 |
| HQ097QX1-IPS | Other | 9.7 | 2048×1536 |
| LP116WH4-SLN1 | LG Display | 11.6 | 1366×768 |
| LTL101AL06-003 | Samsung | 10.1 | 1280×800 |
| LTN101AL03-801 | Samsung | 10.1 | 1280×800 |
| N080ICE-GB0 Rev.A1 | Innolux | 8.0 | 800×1280 |
| N080ICE-GB1 | Innolux | 8.0 | 800×1280 |
| TV097X0M-NS0 | BOE | 9.7 | 768×1024 |
