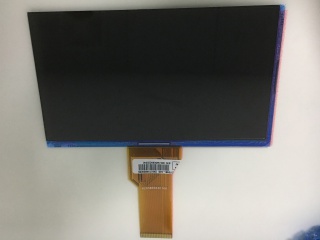

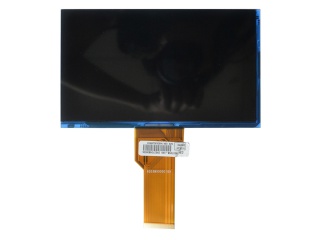

| Nambari ya Sehemu | NE070NB-04G |
| Chapa | Innolux |
| Ukubwa | 7.0 |
| Maombi | Digital Photo Frame |
| Azimio | 800×480 |
| Muundo | a-Si TFT-LCD , CELL |
| Mwangaza | |
| CR | 500:1 |
| Rangi | 16.7M |
| Mwangaza nyuma | No |
| Kiolesura | Parallel |
| chapa | Innolux |
| ukubwa wa diagonal | 7.0 inch |
| muundo wa pixel | 800(RGB)×480 [WVGA] 134PPI |
| eneo la kazi | 154.08(H)×85.92(V) mm |
| eneo la bezel | - |
| mwangaza | 0 cd/m² |
| tazama mwelekeo | - |
| angle ya kutazama | 70/70/50/70 (Typ.)(CR≥10) |
| unene wa sahani | 0.50+0.50 mm |
| rangi ya msaada | 16.7M |
| uzito | 47.0g (Typ.) |
| kiwango cha fremu | 60Hz |
| maelezo ya d-ic | COG Built-in 1 source + 1 gate chips |
| aina ya kiolesura | Parallel RGB (1 ch, 8-bit) , 50 pins FPC |
| usambazaji wa nguvu | 3.3/10.4/15/-10V (Typ.)(DVDD/AVDD/VGH/VGL) |
| mazingira | Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C |
| mfano | NE070NB-04G |
| aina | a-Si TFT-LCD , CELL |
| usanidi | RGB Vertical Stripe |
| muhtasari dim. | 162.5(H)×96.62(V) ×1.43(D) mm |
| matibabu | Antiglare |
| uwiano wa utofautishaji | 500:1 (Typ.) (TM) |
| wakati wa majibu | 25 (Typ.)(Tr+Td) |
| hali ya uendeshaji | TN, Normally White, Transmissive |
| uhamishaji | 4.61% (Typ.)(with Polarizer) |
| chanzo cha mwanga | No B/L |
| iliyoundwa kwa ajili ya | Digital Photo Frame |
| jopo la kugusa | Without |
