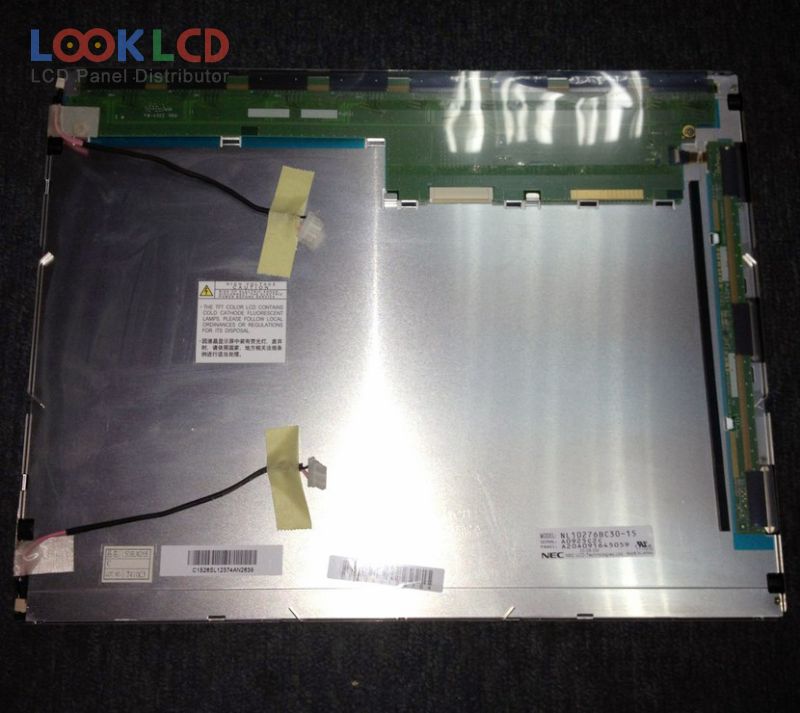

| Nambari ya Sehemu | NL10276BC30-15 |
| Chapa | NLT |
| Ukubwa | 15.0 |
| Maombi | IA |
| Azimio | 1024×768 |
| Muundo | LCM |
| Mwangaza | 250 |
| CR | 400:1 |
| Rangi | 16.7M |
| Mwangaza nyuma | CCFL |
| Kiolesura | LVDS |
| chapa ya paneli | NEC |
| mfano wa paneli | NL10276BC30-15 |
| aina ya paneli | a-Si TFT-LCD , LCM |
| saizi ya paneli | 15.0 inch |
| azimio | 1024(RGB)×768 , XGA |
| hali ya kuonyesha | TN, Normally White, Transmissive |
| eneo la kazi | 304.128×228.096 mm |
| muhtasari | 328×252×11.5 mm |
| uso | Antiglare, Hard coating (3H) |
| mwangaza | 250 cd/m² (Typ.) |
| uwiano wa utofautishaji | 400:1 (Typ.) |
| kuonyesha rangi | 16.7M (6-bit + Hi-FRC), CIE193160% |
| wakati wa majibu | 8/17 (Typ.)(Tr/Td) |
| angle ya kutazama | 60/60/40/60 (Typ.)(CR≥10)(L/R/U/D) |
| masafa | 60Hz |
| aina ya taa | 2 pcsCCFLWithout Driver |
| kiolesura cha ishara | LVDS (1 ch, 8-bit), 20 pins |
| voltage ya pembejeo | 3.3V (Typ.) |
| maombi | IA |
