| Nambari ya Sehemu | NL8060AC26-11 |
| Chapa | NLT |
| Ukubwa | 10.4 |
| Maombi | IA |
| Azimio | 800×600 |
| Muundo | LCM |
| Mwangaza | 190 |
| CR | 150:1 |
| Rangi | 262K |
| Mwangaza nyuma | CCFL |
| Kiolesura | TTL |
| chapa ya paneli | NEC |
| mfano wa paneli | NL8060AC26-11 |
| aina ya paneli | a-Si TFT-LCD , LCM |
| saizi ya paneli | 10.4 inch |
| azimio | 800(RGB)×600 , SVGA |
| hali ya kuonyesha | TN, Normally White, Transmissive |
| eneo la kazi | 211.2×158.4 mm |
| muhtasari | 243×185.1 mm |
| uso | |
| mwangaza | 190 cd/m² (Typ.) |
| uwiano wa utofautishaji | 150:1 (Typ.) |
| kuonyesha rangi | 262K (6-bit), CIE193142% |
| wakati wa majibu | 40 (Max.)(Tr) |
| angle ya kutazama | 45/45/20/45 (Typ.)(CR≥10)(L/R/U/D) |
| masafa | 60Hz |

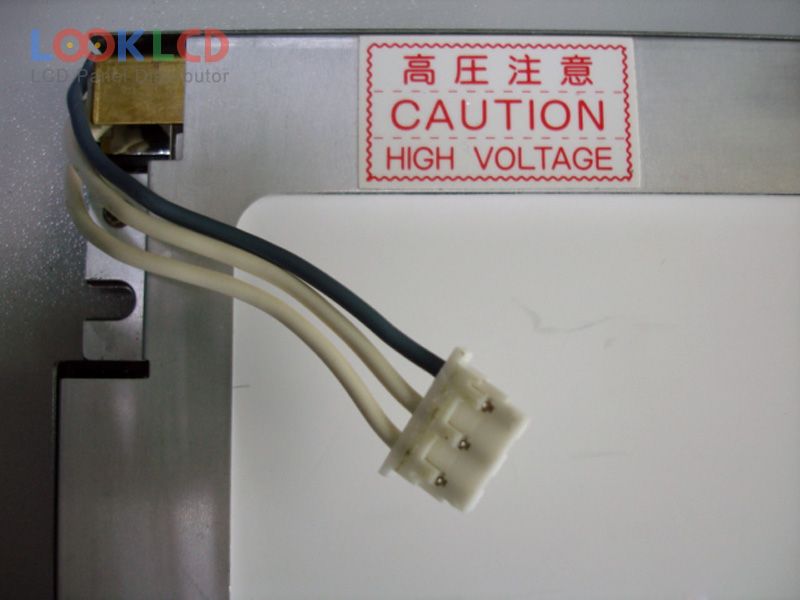

| aina ya taa | 1 pcsCCFLEmbedded (Inverter) |
| kiolesura cha ishara | CMOS (1 ch, 6-bit), 41 pins |
| voltage ya pembejeo | 3.3/5.0V (Typ.)(VCC) |
| maombi | IA |
